Kennametal

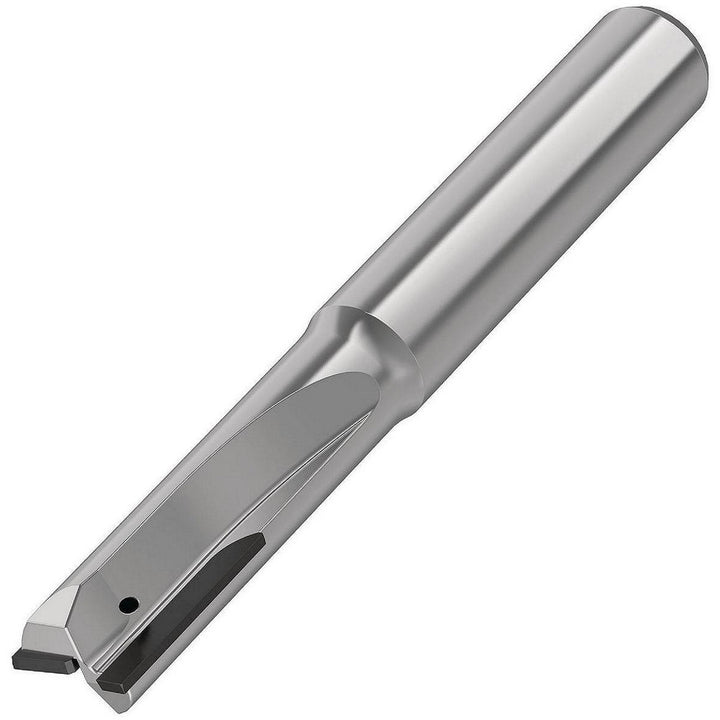

3/4" 2-Flute Solid Carbide Corner Radius End Mill, PCD - Kennametal 6752759

MFR# 6752759Cat# ALCC2RA0750N113HAR015ISeries ALCC

$1,017.85List $1,305.44 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes2

MaterialSolid Carbide

CoatingPCD

Description

The Kennametal 6752759 is a 3/4 2-flute Solid Carbide corner radius end mill with a PCD finish for longer tool life. Suited for non-ferrous metal. 1 length of cut, 4-1/4 overall length. Series ALCC.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishPCD

Coolant throughYes

Corner radius0.0150

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeHelical

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A

Length of cut in1

Length typeShort

Manufacturers catalog numberALCC2RA0750N113HAR015I

Material applicationNon-Ferrous Metal

Material removal typeRoughing

Mill diameter in3/4

Neck diameter0.7165

Number of flutes2

Overall length in4-1/4

PitchCoarse

Primary workpiece materialNon-Ferrous Metal

Reach length (mm)55.00

Shank diameter in3/4

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
