Kennametal

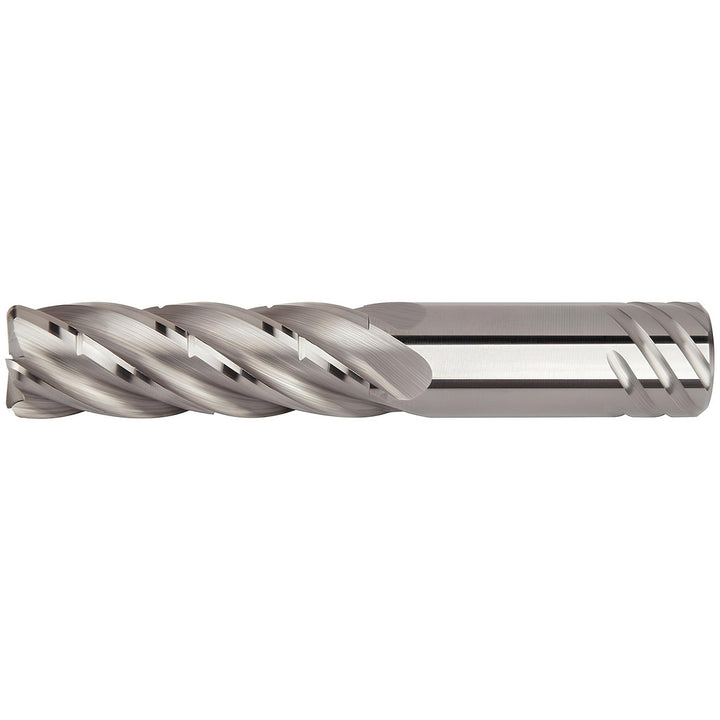

1" 5-Flute Solid Carbide Corner Radius End Mill - Kennametal 6754937
MFR# 6754937Series KOR5
$852.37List $1,093.20
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes5
MaterialSolid Carbide
CoatingBright/Uncoated
Description
The Kennametal 6754937 is a 1 5-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 3 length of cut, 5-1/2 overall length. Series KOR5.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughYes
Corner radius0.0300
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A; HC-CV Form AD; HC-CV Form AD
Helix styleMedium
Length of cut in3
Length typeStandard
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1
Number of flutes5
Overall length in5-1/2
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1
Shank typeSafe-Lock
Single or double endSingle
Variable helixNo
Variable indexNo
