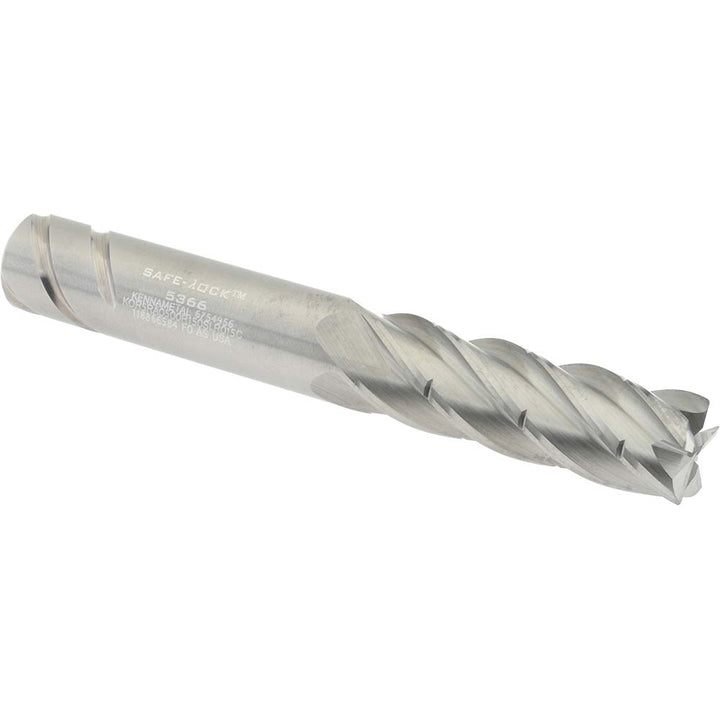

1/2" 5-Flute Solid Carbide Corner Radius End Mill - Kennametal 6754956

Kennametal

1/2" 5-Flute Solid Carbide Corner Radius End Mill - Kennametal 6754956

MFR# 6754956Series KOR5

$178.17List $224.54 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/2
Flutes5
MaterialSolid Carbide
CoatingBright/Uncoated

Description

The Kennametal 6754956 is a 1/2 5-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 1-1/2 length of cut, 3-1/2 overall length. Series KOR5.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishBright/Uncoated
Coolant throughYes
Corner radius0.0150
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHC-HSK Form A; HC-HSK Form A; HC-CV Form AD; ER Single Angle Standard Collets; ER Single Angle Standard Collets
Helix styleMedium
Length of cut in1-1/2
Length typeStandard
Material applicationNon-Ferrous Metal
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1/2
Number of flutes5
Overall length in3-1/2
PitchNormal
Primary workpiece materialNon-Ferrous Metal
Shank diameter in1/2
Shank typeSafe-Lock
Single or double endSingle
Variable helixNo
Variable indexNo
