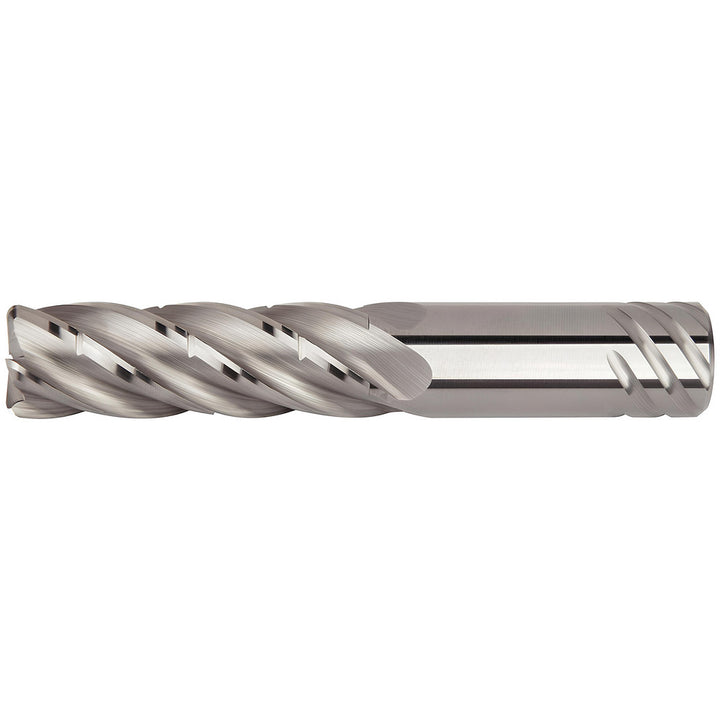

3/4" 5-Flute Solid Carbide Corner Radius End Mill - Kennametal 6754964

Name: 3/4" 5-Flute Solid Carbide Corner Radius End Mill - Kennametal 6754964
Brand: Kennametal
SKU: 6754964
Price: 358.75 USD
Availability: InStock

MFR# 6754964Series KOR5

$358.75List $452.11 Save 20%

Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes5

MaterialSolid Carbide

CoatingBright/Uncoated

Description

The Kennametal 6754964 is a 3/4 5-flute Solid Carbide (Submicron) corner radius end mill. Suited for non-ferrous metal. 2-1/4 length of cut, 5 overall length. Series KOR5.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishBright/Uncoated

Coolant throughYes

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A; Hydraulic Chuck Standard Line Inch KM63XMZ

Helix styleMedium

Length of cut in2-1/4

Length typeStandard

Material applicationNon-Ferrous Metal

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in3/4

Number of flutes5

Overall length in5

PitchNormal

Primary workpiece materialNon-Ferrous Metal

Shank diameter in3/4

Shank typeSafe-Lock

Single or double endSingle

Variable helixNo

Variable indexNo
