Kennametal

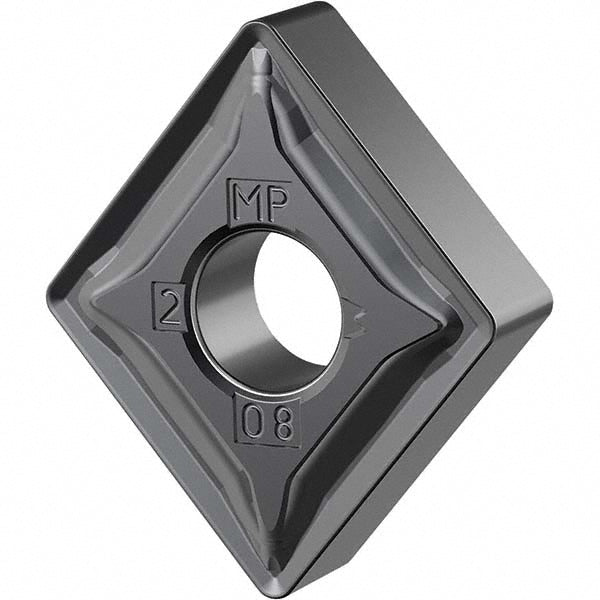

CNGG120408FS Carbide Insert, Grade KCS10B, AlTiN - Kennametal 6756004
MFR# 6756004ISO/ANSI# CNGG120408Series KENLOC
$38.10List $45.70
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKCS10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 6756004 is a CNGG120408FS carbide indexable insert, grade KCS10B, AlTiN coated. Suited for stainless steel, superalloys & titanium.
Specifications
Ansi insert codeCNGG432
Ansi size code432
Chip breakerFS
Chip breaker operationFinishing
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Hole diameter0.2031
Included angle80
Industry standard numberCNGG432FS
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCarbide
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGG
Insert thickness in3/16
Iso codeCNGG120408FS
Iso insert codeCNGG120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number6756004
Manufacturer gradeKCS10B
Material gradeS10
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialStainless Steel; Superalloys & Titanium
RakeNegative
Rake angle12
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
