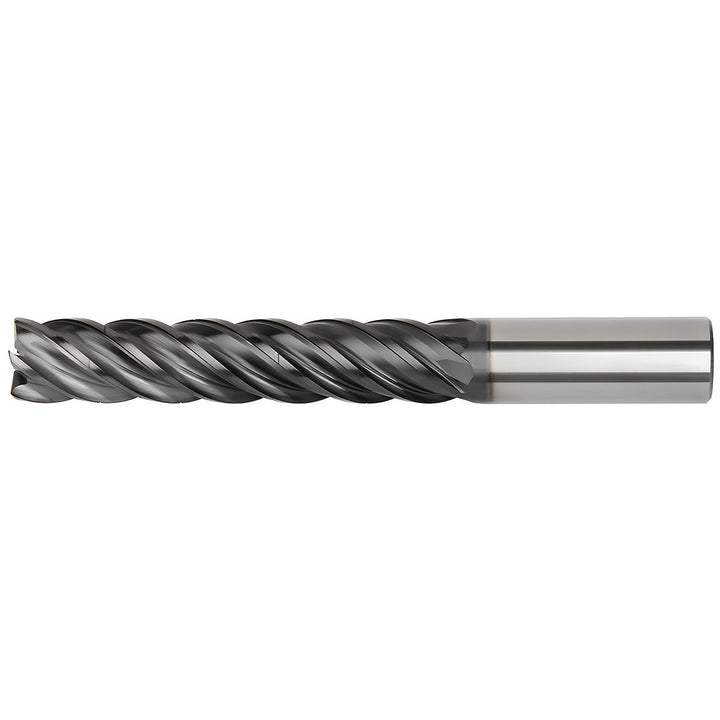

3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6764474

Kennametal

3/4" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6764474

MFR# 6764474Series KOR5

$689.91List $869.45 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter3/4
Flutes5
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6764474 is a 3/4 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3-3/4 length of cut, 7 overall length. Series KOR5.

Specifications

CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughYes
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A
Helix styleHigh
Length of cut in3-3/4
Length typeExtra Long
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in3/4
Number of flutes5
Overall length in7
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length in3-3/4
Shank diameter in3/4
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
