Kennametal

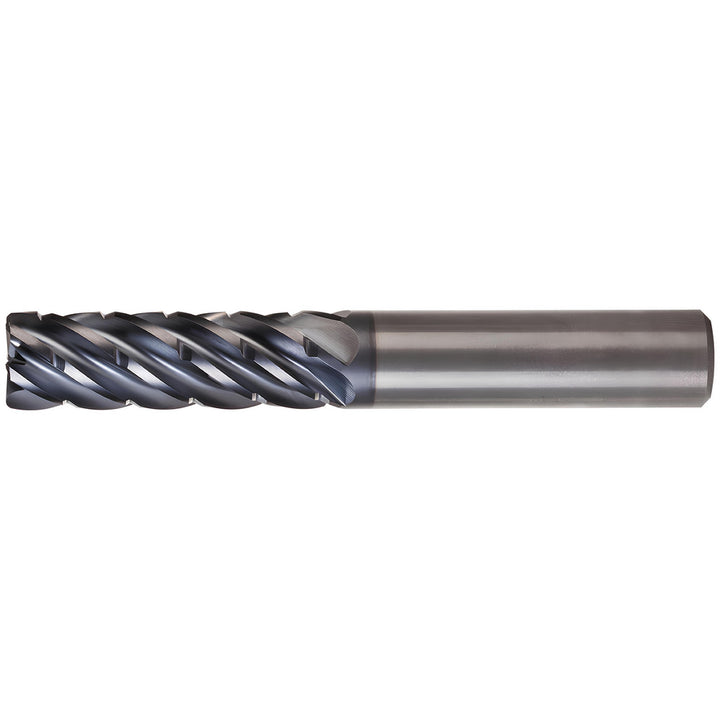

3/4" 6-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6767710

MFR# 6767710Series KOR6

$615.09List $788.89 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/4

Flutes6

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6767710 is a 3/4 6-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3-3/4 length of cut, 7 overall length. Series KOR6.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0600

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC 1/2 - HC 1 1/4 Hydraulic Sleeves Inch with Inch Bores; HC 20M - HC 32M Hydraulic Sleeves Metric with Inch Bores; HC-HSK Form A; HC-HSK Form A; Hydraulic Chuck Standard Line Inch KM63XMZ

Helix styleHigh

Length of cut in3-3/4

Length typeExtra Long

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeFinishing

Mill diameter in3/4

Number of flutes6

Overall length in7

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter in3/4

Shank typeSafe-Lock

Single or double endSingle

Variable helixNo

Variable indexNo
