Kennametal

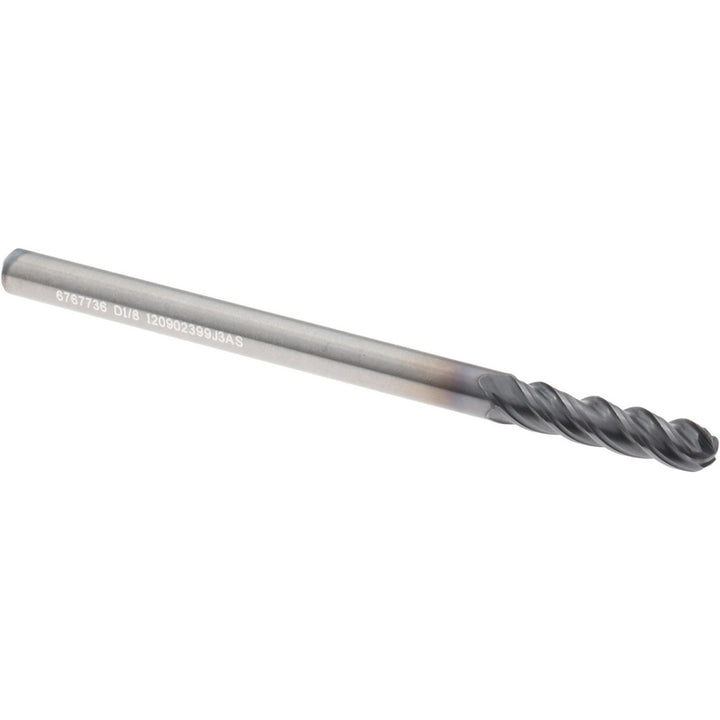

1/8" 4-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 6767736
MFR# 6767736Cat# H1TE4BN0125L050HASeries H1TEBN..N-L
$55.33List $69.72
Save 20%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1/8
Flutes4
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 6767736 is a 1/8 4-flute Solid Carbide (KCPM15) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1/2 length of cut, 2 overall length. Series H1TEBN..N-L.
Specifications
Additional informationVersatile Solid Carbide End Mill for Steels, Stainless Steel, Cast Iron, & High Temperature Alloys. Harvi I Te Solid Carbide End Mills Cover a Variety of Operations, Including Dynamic Milling, & Extreme Ramping Operations. Harvi I Te Solid Carbide End M
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
Helix styleVariable
Length of cut in1/2
Length typeLong
Manufacturers catalog numberH1TE4BN0125L050HA
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter in1/8
Neck length0.0000
Nose radius0.0625
Number of flutes4
Overall length in2
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length0.5000
Shank diameter in1/8
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexNo
