Kennametal

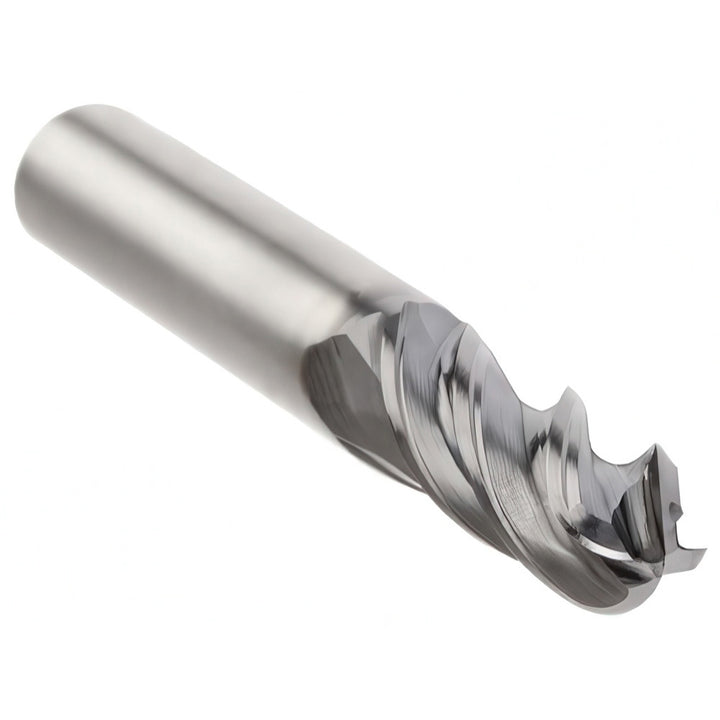

3/16" 4-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 6767737

MFR# 6767737Cat# H1TE4BN0188L075HASeries H1TEBN..N-L

$58.57List $75.11 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter3/16

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6767737 is a 3/16 4-flute Solid Carbide (KCPM15) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3/4 length of cut, 2-1/2 overall length. Series H1TEBN..N-L.

Specifications

Additional informationVersatile Solid Carbide End Mill for Steels, Stainless Steel, Cast Iron, & High Temperature Alloys. Harvi I Te Solid Carbide End Mills Cover a Variety of Operations, Including Dynamic Milling, & Extreme Ramping Operations. Harvi I Te Solid Carbide End M

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

Helix styleVariable

Length of cut in3/4

Length typeLong

Manufacturers catalog numberH1TE4BN0188L075HA

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter in3/16

Neck length0.0000

Nose radius0.0938

Number of flutes4

Overall length in2-1/2

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Reach length0.7500

Shank diameter in3/16

Shank typeStraight-Cylindrical

Single or double endSingle

System of measurementFractional Inch

Variable helixYes

Variable indexNo
