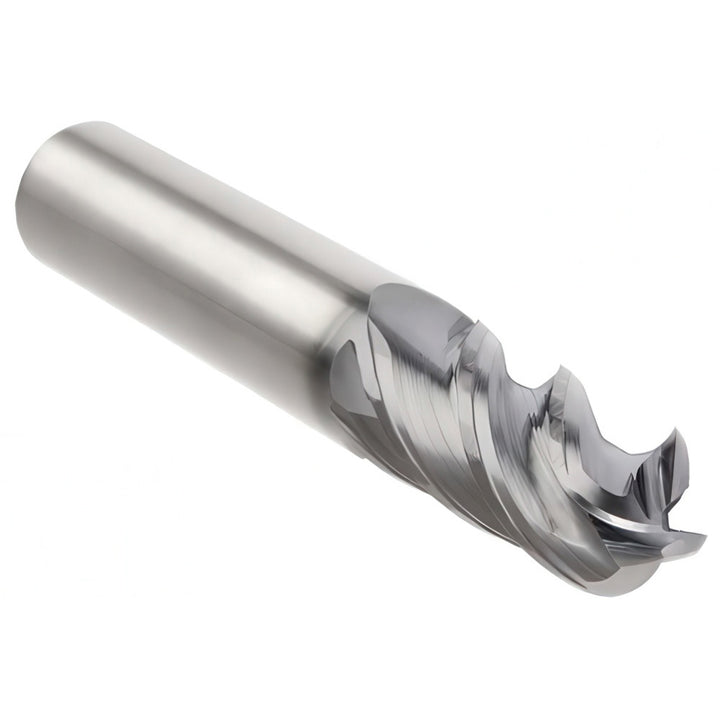

1/4in" 4-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 6767766

Kennametal

1/4in" 4-Flute Solid Carbide Ball End Mill, AlTiN - Kennametal 6767766

MFR# 6767766Cat# H1TE4BN0250R075HASeries H1TEBN..N-L

$80.29List $101.19 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Diameter1/4in
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6767766 is a 1/4in 4-flute Solid Carbide (KCPM15) ball end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3/4in length of cut, 2-1/2in overall length. Series H1TEBN..N-L.

Specifications

Additional informationVersatile Solid Carbide End Mill For Steels, Stainless Steel, Cast Iron, And High Temperature Alloys. Harvi I Te Solid Carbide End Mills Cover A Variety Of Operations, Including Dynamic Milling, And Extreme Ramping Operations. Harvi I Te Solid Carbide E
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeHelical
Helix angleVariable
Helix styleVariable
Length of cut in3/4in
Length typeStandard
Manufacturers catalog numberH1TE4BN0250R075HA
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter in1/4in
Neck length0.0000
Nose radius0.1250
Number of flutes4
Overall length in2-1/2in
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Reach length0.7500
Shank diameter in1/4in
Shank typeStraight-Cylindrical
Single or double endSingle
System of measurementFractional Inch
Variable helixYes
Variable indexNo
