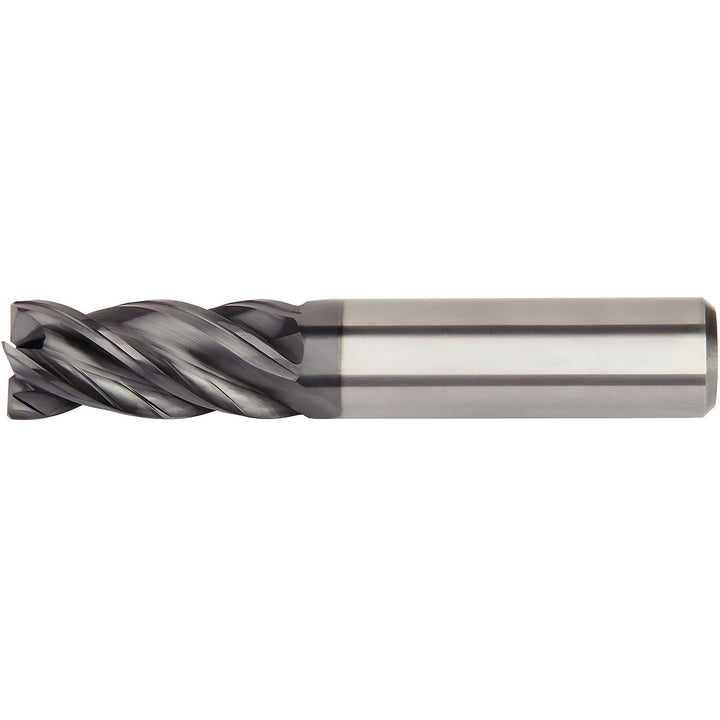

0.1378" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6767952

Kennametal

0.1378" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6767952

MFR# 6767952Cat# H1TE4CH0350R008HAMSeries H1TE

$65.98List $83.15 Save 20%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

⚡ Need it urgently? Confirm stock & ship time →

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
Flutes4
MaterialSolid Carbide
CoatingAlTiN

Description

The Kennametal 6767952 is a 0.1378 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series H1TE.

Specifications

Additional informationPocketing; Helical Milling; Plunge Milling
CentercuttingYes
Chamfer angle45
Chamfer length (mm)0.30
Chamfer width (mm)0.30
ChipbreakerNo
Coating finishAlTiN
Coolant throughNo
Corner styleCorner Chamfer; Shank - Cylindrical Plain; 1001474
Cutting directionRight Hand
End mill materialSolid Carbide
Extended reachNo
Flute directionRight Hand
Flute typeVariable
Helix styleVariable
Length of cut (mm)8.00
Length typeRegular
Manufacturers catalog numberH1TE4CH0350R008HAM
Material gradeKCPM15
Material removal typeRoughing & Finishing
Mill diameter0.1378
Number of flutes4
Overall length (mm)54.00
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
RampingBlank
Reach length (mm)8.00
Shank diameter (mm)6.00
Shank typeStraight-Cylindrical
Shoulder millingRoughing
Single or double endSingle
SlottingSquare End; Trochoidal Milling; Side Milling
Variable helixYes
Variable indexYes
