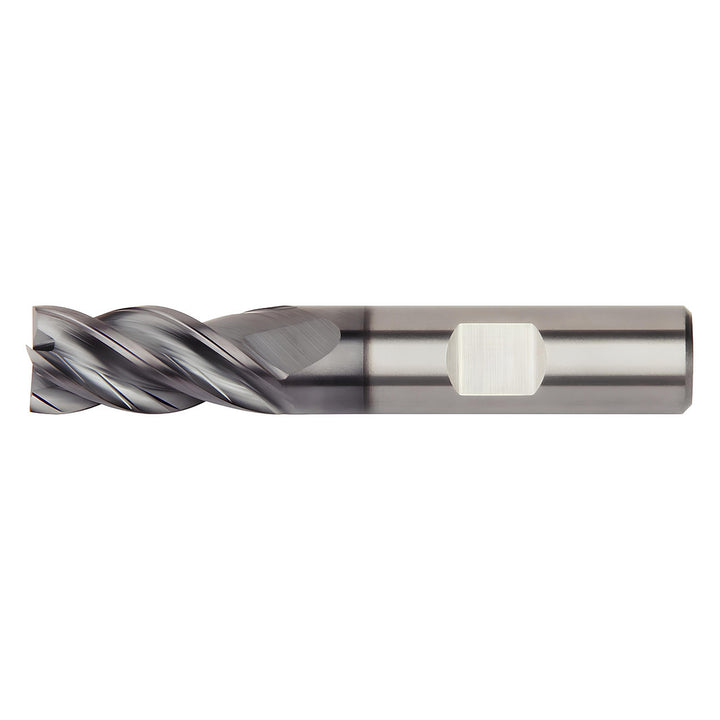

0.1378" 4-Flute Solid Carbide Corner Radius & Corner Chamfer End Mill, AlTiN - Kennametal 6767956

MFR# 6767956Cat# H1TE4CH0350R008HBMSeries H1TE

$57.02List $73.13 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Flutes4

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6767956 is a 0.1378 4-flute Solid Carbide (KCPM15) corner radius & corner chamfer end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. Series H1TE.

Specifications

Additional informationSide Milling

CentercuttingYes

Chamfer angle45

Chamfer length (mm)0.30

Chamfer width (mm)0.30

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Cutting directionRight Hand

End mill materialSolid Carbide

Extended reachNo

Flute directionRight Hand

Flute typeVariable

Helix styleVariable

Length of cut (mm)8.00

Length typeRegular

Manufacturers catalog numberH1TE4CH0350R008HBM

Material gradeKCPM15

Material removal typeRoughing & Finishing

Mill diameter0.1378

Number of flutes4

Overall length (mm)54.00

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

RampingBlank; Trochoidal Milling

Reach length (mm)8.00

Shank diameter (mm)6.00

Shank typeWeldon Flat

Shoulder millingRoughing

Single or double endSingle

SlottingSquare End

Tool dimensionsFlute Configuration: 4; Shank - Cylindrical We

Variable helixYes

Variable indexYes
