Kennametal

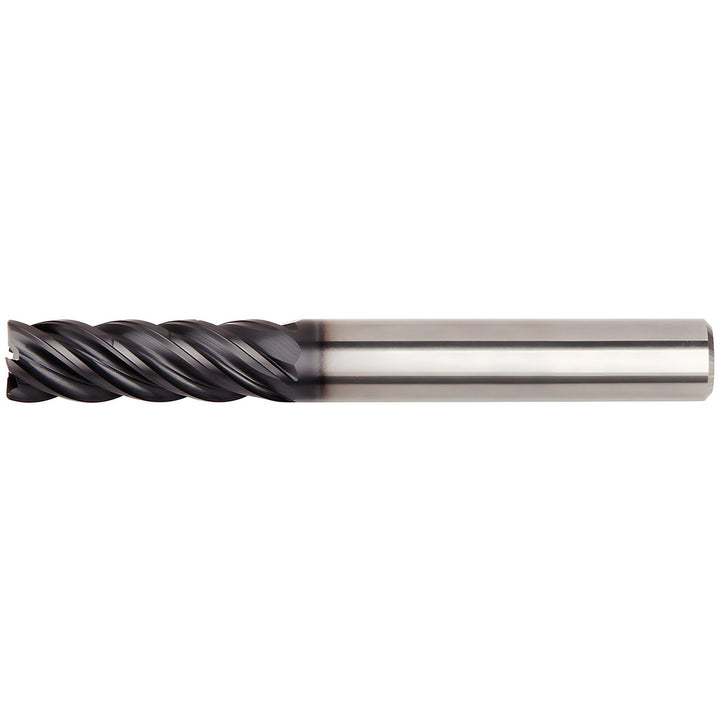

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6769783

MFR# 6769783Series KOR5

$301.19List $386.29 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The Kennametal 6769783 is a 5/8 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 1-7/8 length of cut, 4 overall length. Series KOR5.

Specifications

CentercuttingNo

ChipbreakerNo

Coating finishAlTiN

Coolant throughYes

Corner radius0.0300

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withHC-HSK Form A; HC-HSK Form A

Helix styleHigh

Length of cut in1-7/8

Length typeStandard

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Material gradeSubmicron

Material removal typeRoughing & Finishing

Mill diameter in5/8

Number of flutes5

Overall length in4

PitchNormal

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material

Shank diameter in5/8

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
