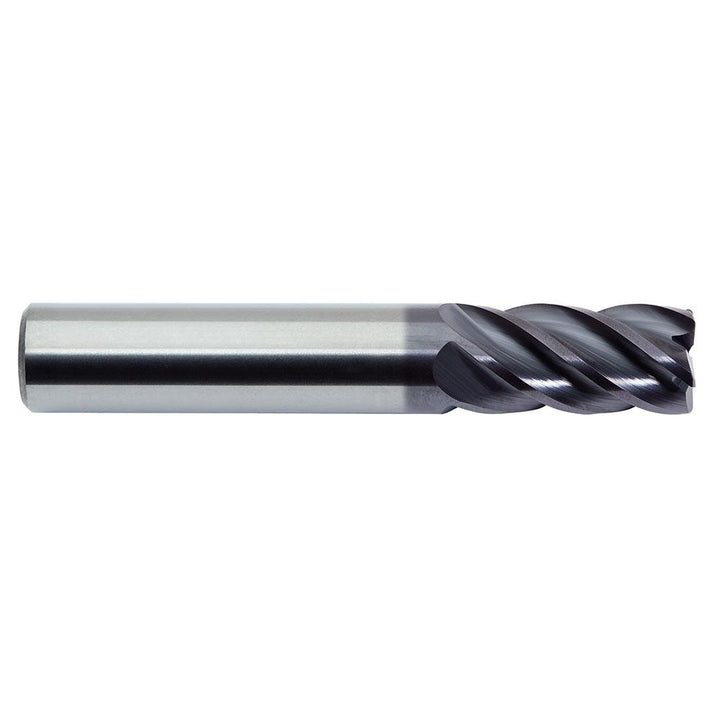

5/8" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - M.A. Ford. 17862512A

MFR# 17862512ASeries 178

$239.03List $306.57 Save 22%

In stock - ships in 1-3 business days

Request a quote

Fast sourcing
Regrinding available
20+ yrs expertise

Diameter5/8

Flutes5

MaterialSolid Carbide

CoatingAlTiN

Description

The M.A. Ford. 17862512A is a 5/8 5-flute Solid Carbide corner radius end mill. Suited for steel, stainless steel, cast iron, superalloys & titanium. 1-1/4 length of cut, 3-1/2 overall length. Series 178.

Specifications

CentercuttingYes

ChipbreakerNo

Coating finishAlTiN

Coolant throughNo

Corner radius0.0150

Corner radius tolerance+0.00120 to -0.00120 in

Cutting directionRight Hand

End mill materialSolid Carbide

End typeCorner Radius

Extended reachNo

Flute directionRight Hand

Flute typeSpiral

For use withToolholder

Helix styleMedium

Length of cut in1-1/4

Length typeRegular

Manufacturers catalog number17862512A

Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Material removal typeRoughing & Finishing

Mill diameter in5/8

Mill diameter tolerance+0.0000 to -0.0030 in

Number of flutes5

Overall length in3-1/2

PitchClose

Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium

Reach length in1-1/4

Shank diameter in5/8

Shank diameter tolerance+0.0000 to -0.0004 in

Shank typeStraight-Cylindrical

Single or double endSingle

Variable helixNo

Variable indexNo
