Kennametal

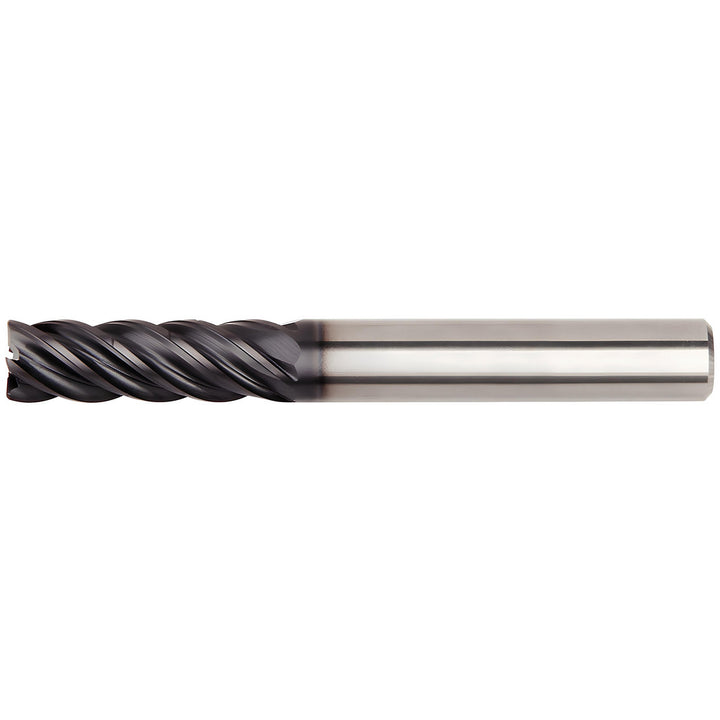

1" 5-Flute Solid Carbide Corner Radius End Mill, AlTiN - Kennametal 6769785
MFR# 6769785Series KOR5
$712.61List $913.95
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Diameter1
Flutes5
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 6769785 is a 1 5-flute Solid Carbide (Submicron) corner radius end mill with a AlTiN finish for longer tool life. Suited for steel, stainless steel, cast iron, superalloys & titanium, hard material. 3 length of cut, 6 overall length. Series KOR5.
Specifications
CentercuttingNo
ChipbreakerNo
Coating finishAlTiN
Coolant throughYes
Corner radius0.0600
Cutting directionRight Hand
End mill materialSolid Carbide
End typeCorner Radius
Extended reachNo
Flute directionRight Hand
Flute typeSpiral
For use withHC-HSK Form A; HC-HSK Form A; HC-CV Form AD; HC-CV Form AD; ER Single Angle Standard Collets
Helix styleHigh
Length of cut in3
Length typeStandard
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Material gradeSubmicron
Material removal typeRoughing & Finishing
Mill diameter in1
Number of flutes5
Overall length in6
PitchNormal
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium; Hard Material
Shank diameter in1
Shank typeStraight-Cylindrical
Single or double endSingle
Variable helixNo
Variable indexNo
