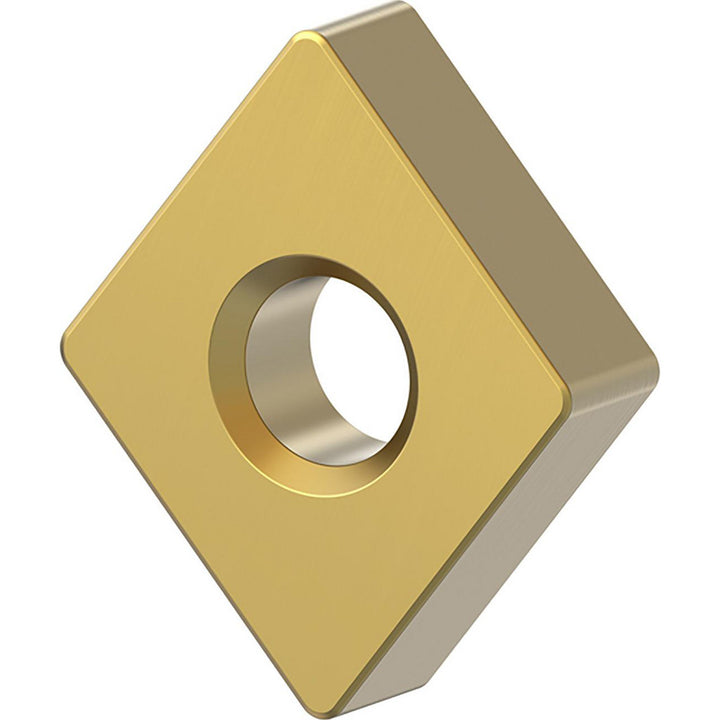

CNGA120404T01020 Ceramic Insert, Grade KYHK15B, AlTiN - Kennametal 6770553

Kennametal

CNGA120404T01020 Ceramic Insert, Grade KYHK15B, AlTiN - Kennametal 6770553

MFR# 6770553ISO/ANSI# CNGA431T0420Series KENLOC

$25.04List $30.03 Save 16%
Usually ships in 1-3 business days

Ship times are estimates. We confirm availability on every order and email you right away if anything changes.

Sold in multiples of 10 — minimum order 10

Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.

Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKYHK15B
MaterialCeramic
CoatingAlTiN

Description

The Kennametal 6770553 is a CNGA120404T01020 ceramic indexable insert, grade KYHK15B, AlTiN coated. Suited for cast iron, superalloys & titanium, hard material.

Specifications

Chip breakerFlat Top
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/64
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberCNGA431T0420
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCeramic
Insert shapeDiamond
Insert size code431
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120404T01020
Length range0.5000 - 0.6000
Manufacturers catalog number6770553
Manufacturer gradeKYHK15B
Material gradeAlumina TiCN
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
