Kennametal

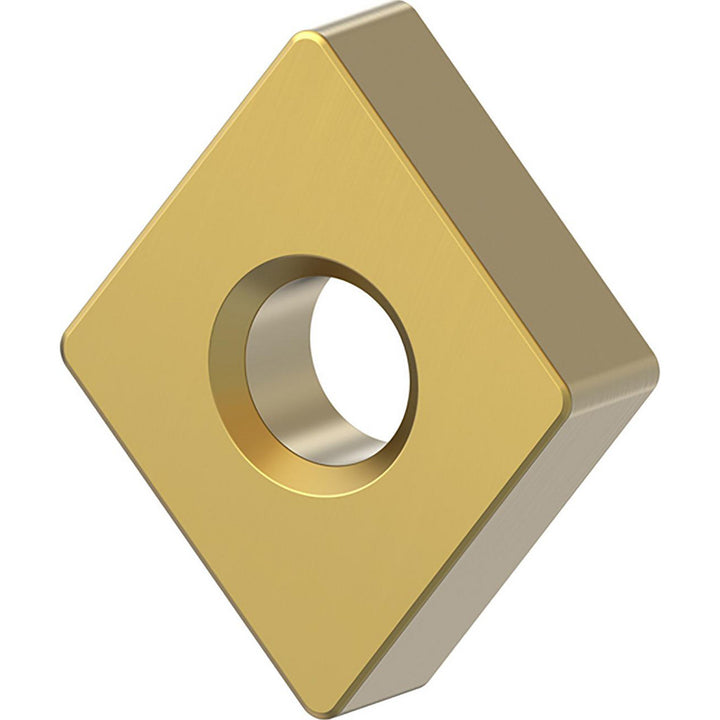

CNGA120408E Ceramic Insert, Grade KYHK15B, AlTiN - Kennametal 6770555
MFR# 6770555ISO/ANSI# CNGA120408Series KENLOC
$21.59List $25.89
Save 16%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKYHK15B
MaterialCeramic
CoatingAlTiN
Description
The Kennametal 6770555 is a CNGA120408E ceramic indexable insert, grade KYHK15B, AlTiN coated. Suited for cast iron, superalloys & titanium, hard material.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberCNGA432E
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5077
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408E
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number6770555
Manufacturer gradeKYHK15B
Material gradeAlumina TiCN
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
