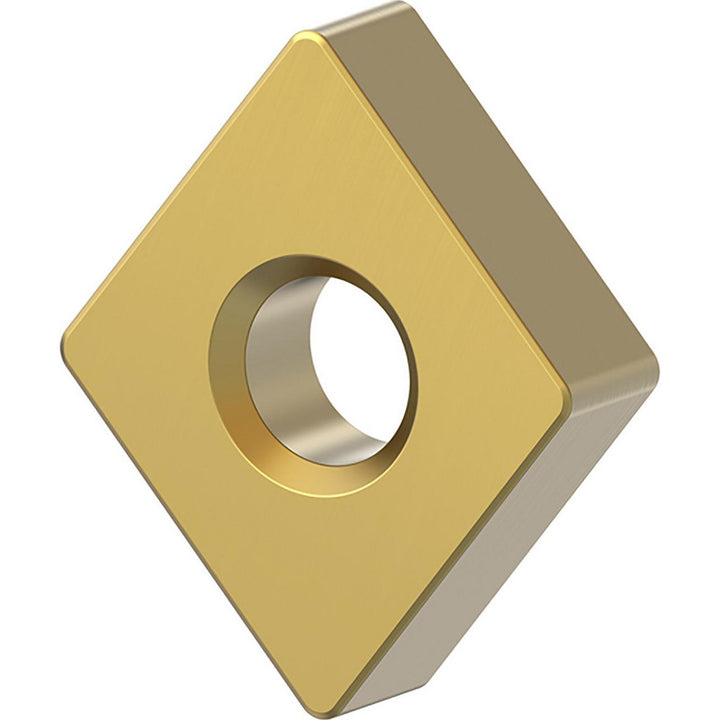

CNGA120408S01515GW Ceramic Insert, Grade KYHK15B, AlTiN - Kennametal 6770556
MFR# 6770556ISO/ANSI# CNGA120408Series KENLOC
$25.10List $29.57
Save 15%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeC - Diamond (Rhombic) 80-Deg
GradeKYHK15B
MaterialCeramic
CoatingAlTiN
Description
The Kennametal 6770556 is a CNGA120408S01515GW ceramic indexable insert, grade KYHK15B, AlTiN coated. Suited for cast iron, superalloys & titanium, hard material.
Specifications
Ansi insert codeCNGA432
Ansi size code432
Chip breakerFlat Top
Chip breaker operationFlat Top
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Hole diameter0.2031
Included angle80
Industry standard numberCNGA432S0615GW
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.5080
Insert materialCeramic
Insert shapeC - Diamond (Rhombic) 80-Deg
Insert size code432
Insert styleCNGA
Insert thickness in3/16
Iso codeCNGA120408S01515GW
Iso insert codeCNGA120408
Iso size code120408
Length range0.5000 - 0.6000
Manufacturers catalog number6770556
Manufacturer gradeKYHK15B
Material gradeAlumina TiCN
Maximum depth of cut0.1692
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle0
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
