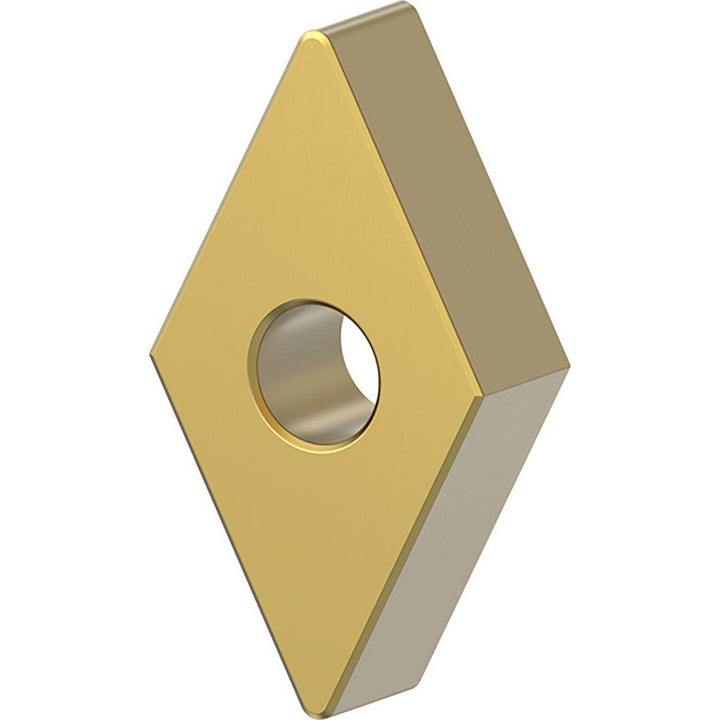

DNGA150408T01020 Ceramic Insert, Grade KYHK15B, AlTiN - Kennametal 6770641
MFR# 6770641ISO/ANSI# DNGA432T0420Series KENLOC
$26.43List $31.69
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 10 — minimum order 10
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKYHK15B
MaterialCeramic
CoatingAlTiN
Description
The Kennametal 6770641 is a DNGA150408T01020 ceramic indexable insert, grade KYHK15B, AlTiN coated. Suited for cast iron, superalloys & titanium, hard material.
Specifications
Chip breakerFlat Top
Clearance codeN
Coating finishAlTiN
Coating processPVD
Corner radius in1/32
Cutting edge styleT-Land
Full radiusNo
Hole diameter0.2031
Included angle55
Industry standard numberDNGA432T0420
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.2208
Insert materialCeramic
Insert shapeDiamond
Insert size code432
Insert styleDNGA
Insert thickness in3/16
Iso codeDNGA150408T01020
Length range0.7000 - 10.0000
Manufacturers catalog number6770641
Manufacturer gradeKYHK15B
Material gradeAlumina TiCN
Maximum depth of cut0.4065
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialCast Iron; Superalloys & Titanium; Hard Material
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeG
Width in1/2
Wiper edgeNo
