Kennametal

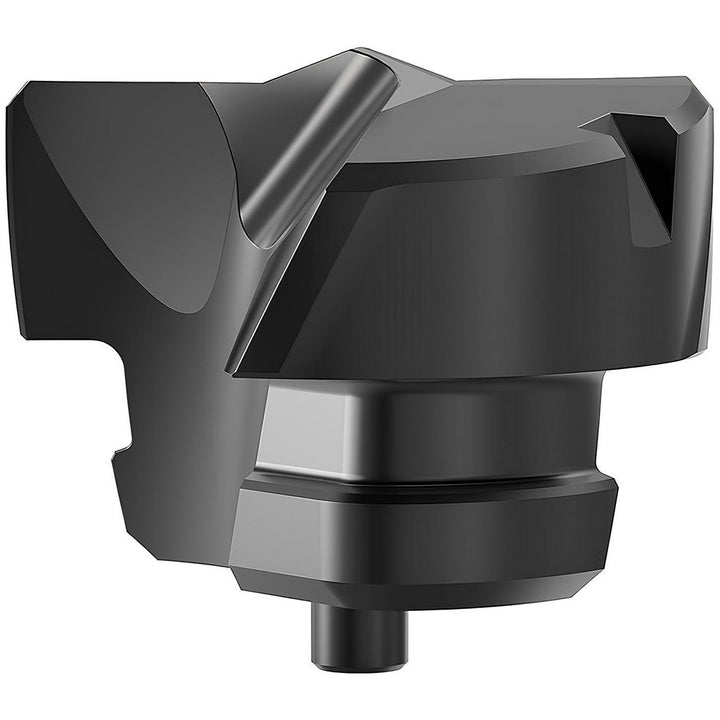

Carbide Insert, Grade KCP15A, AlTiN - Kennametal 6771155
MFR# 6771155Series KTFSS
$176.23List $201.50
Save 12%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKCP15A
CoatingAlTiN
Description
The Kennametal 6771155 is a carbide indexable insert, grade KCP15A, AlTiN coated. Suited for steel, stainless steel, cast iron.
Specifications
ApplicationsDrilling
Coating finishAlTiN
Coating processPVD
Coolant throughNo
Cutting diameter0.7087
DrillingInclinedEntry; CounterBoring; 100160772
Drill point angle180
Flute length (mm)9.00
Flute typeStraight
Functional length0.3544
Height in13/32
Included angle degree180
Insert geometryFEG
Insert holding methodClamp
Insert seat sizeW
Iso numberKTFSS18000FEGM
Manufacturer gradeKCP15A
Material gradeFine Grain
Number of flutes2
Overall length projection0.4064
Point typeFlat
Primary workpiece materialSteel; Stainless Steel; Cast Iron
Spiral typeStraight
StyleKTFSS
Tip materialSolid Carbide
Tooldimensions2flute/4margin/nocool
