Kennametal

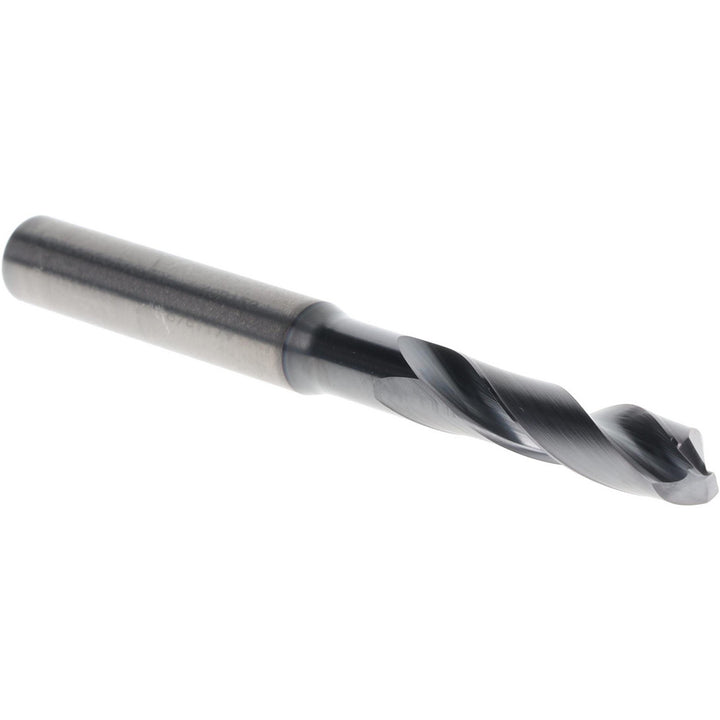

17/64" Solid Carbide Drill Bit, Multi-layer, 140° point - Kennametal 6781179
MFR# 6781179Series HPX
$137.32List $176.12
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size17/64
Flutes2
CoatingMulti-layer
Description
The Kennametal 6781179 is a 17/64" Solid Carbide drill bit with a Multi-layer finish, 140° point. Suited for steel. Series HPX.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeKCP15B
Drill bit size in17/64
Drill bit size range0.2500 to 0.3000
Drill point angle140
Drill point length (mm)1.46
Drill tip finish coatingAlTiN; TiN
Flute by diameter ratio3xD
Flute length (mm)34.00
Flute typeRegular Spiral
Material gradeKCP15B
Maximum drilling depth (mm)24.00
Number of flutes2
Overall length3.1102
Point typeStandard
Primary workpiece materialSteel
Shank diameter0.3150
Shank length1.4173
Shank typeStraight
Spiral typeRegular
Tool materialSolid Carbide
