Kennametal
5/16" Solid Carbide Drill Bit, Multi-layer, 140° point - Kennametal 6781522
MFR# 6781522
$162.75List $208.74
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Drill size5/16
Flutes2
CoatingMulti-layer
Description

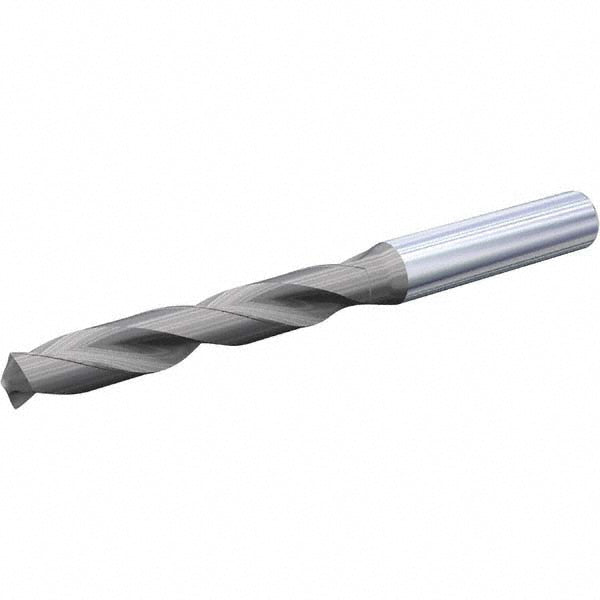

The Kennametal 6781522 is a 5/16" Solid Carbide drill bit with a Multi-layer finish, 140° point.
Specifications
Coating finishMulti-layer
Coolant throughNo
Cutting directionRight Hand
Drill bit gradeKCP15B
Drill bit materialSolid Carbide
Drill bit size in5/16
Drill bit size range0.3000 - 0.3500
Drill point angle degrees140
Drill point length (mm)1.71
Flute by diameter ratio5xD
Flute length2.0866
Flute typeRegular Spiral
Material gradeKCP15B
Maximum drilling depth (mm)43.00
Number of flutes2
Overall length3.5827
Shank diameter (mm)8
Shank length (mm)36
Shank typeStraight
