Kennametal

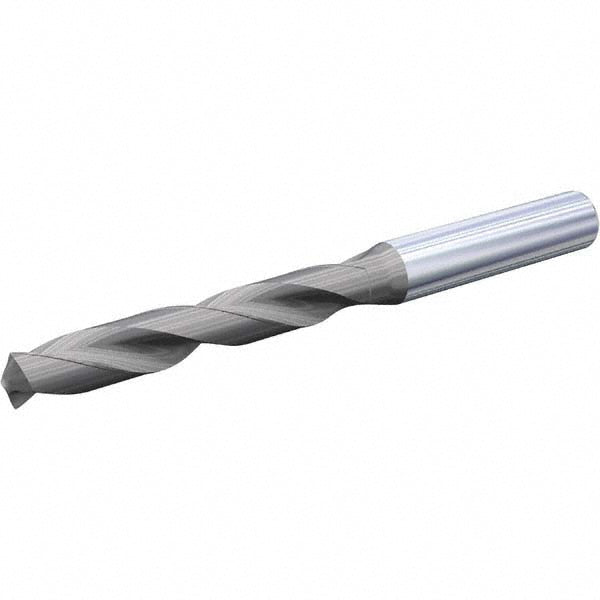

0.1811" Solid Carbide Drill Bit, Multi-layer, 140° point - Kennametal 6782514
MFR# 6782514
$185.93List $238.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
CoatingMulti-layer
Description
The Kennametal 6782514 is a 0.1811" Solid Carbide drill bit with a Multi-layer finish, 140° point.
Specifications
Coating finishMulti-layer
Coolant throughYes
Cutting directionRight Hand
Drill bit gradeKCP15B
Drill bit materialSolid Carbide
Drill bit size0.1811
Drill bit size range0.1500 - 0.2000
Drill point angle degrees140
Drill point length (mm)1.03
Flute by diameter ratio6xD
Flute length1.3780
Flute typeHelical
Maximum drilling depth (mm)28.60
Number of flutes2
Overall length2.9134
Shank diameter in3/16
Shank length (mm)36.5
Shank typeStraight
