Kennametal

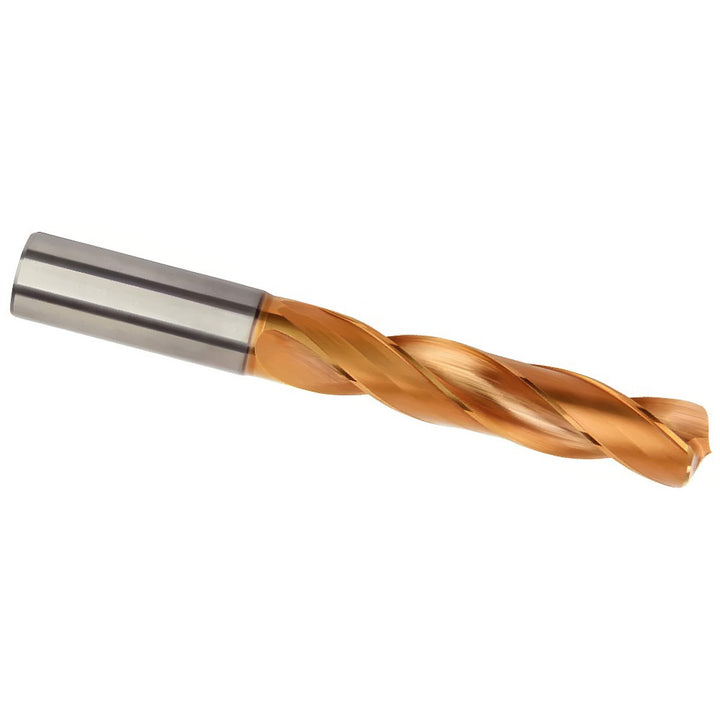

0.2047" Solid Carbide Drill Bit, AlTiN, 143° point - Kennametal 6783483
MFR# 6783483
$185.93List $238.46
Save 22%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
Description
The Kennametal 6783483 is a 0.2047" Solid Carbide drill bit with a AlTiN finish, 143° point.
Specifications
Coolant throughYes
Cutting directionRight Hand
Drill bit finish coatingAlTiN
Drill bit gradeKCK10A
Drill bit materialSolid Carbide
Drill bit size0.2047
Drill bit size range0.2000 - 0.2500
Drill point angle degrees143
Drill point length (mm)1.53
Flute by diameter ratio5xD
Flute length (mm)43.00
Flute typeHelical
Maximum drilling depth (mm)34.90
Number of flutes2
Overall length (mm)82.00
Shank diameter in1/4
Shank length1.4370
Shank typeStraight-Cylindrical
