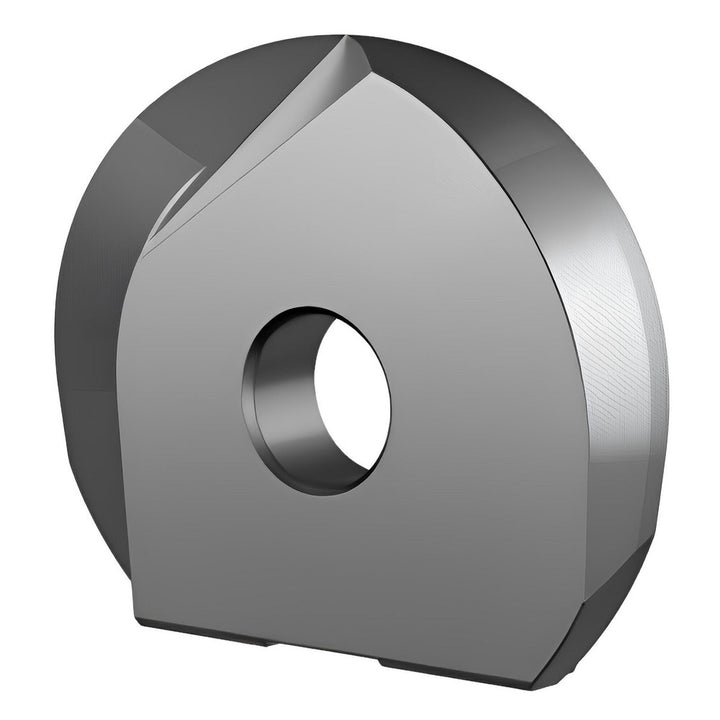

KDMB0625M0ERGP Solid Carbide Insert, Grade KCPK10, TiCN - Kennametal 6784069

Kennametal

KDMB0625M0ERGP Solid Carbide Insert, Grade KCPK10, TiCN - Kennametal 6784069

MFR# 6784069ISO/ANSI# KDMB0625M0ERGPCat# KDMB0625M0ERGPSeries KDMB

$95.67List $116.77 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC5/8
ShapeBall Nose
GradeKCPK10
MaterialSolid Carbide
CoatingTiCN

Description

The Kennametal 6784069 is a KDMB0625M0ERGP solid carbide indexable insert, grade KCPK10, TiCN coated. Suited for steel, stainless steel, cast iron, hard material.

Specifications

Ansi codeKDMB0625M0ERGP
Chip breakerGP
Coating finishTiCN
Coating processCVD
Corner radius in5/16
Cutter series compatibilityKDMB
Cutting edge styleHoned
Hole diameter0.1969
Included angle degree360
Inscribed circle in5/8
Inscribed circle range0.6000 to 0.7000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size06
Insert size code0625
Insert styleKDMB
Iso codeKDMB0625M0ERGP
Length in5/8
Length range0.6000 to 0.6500
Manufacturers catalog numberKDMB0625M0ERGP
Manufacturer gradeKCPK10
Material applicationSteel; Stainless Steel; Cast Iron; Hard Material
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Hard Material
RakePositive
Relief angle15.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1181
Thickness range0.1000 to 0.1250
Width in5/8
