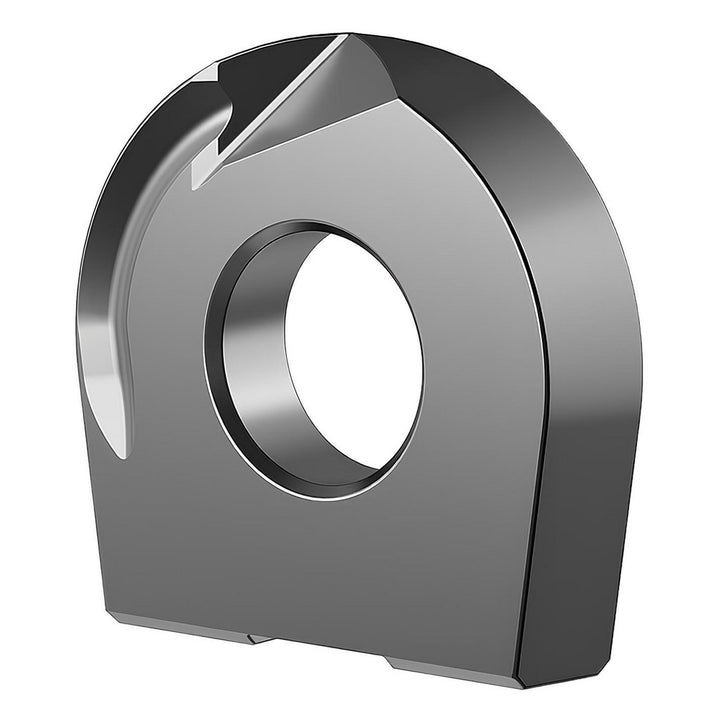

KDMB1000M0ERGC Solid Carbide Insert, Grade KCPH15, AlCrON - Kennametal 6784085

Kennametal

KDMB1000M0ERGC Solid Carbide Insert, Grade KCPH15, AlCrON - Kennametal 6784085

MFR# 6784085ISO/ANSI# KDMB1000M0ERGCCat# KDMB1000M0ERGCSeries KDMB

$136.55List $166.67 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC1
ShapeBall Nose
GradeKCPH15
MaterialSolid Carbide
CoatingAlCrON

Description

The Kennametal 6784085 is a KDMB1000M0ERGC solid carbide indexable insert, grade KCPH15, AlCrON coated. Suited for steel, stainless steel, hard material, non-ferrous metal, superalloys & titanium, hard material.

Specifications

Ansi codeKDMB1000M0ERGC
Chip breakerGC
Coating finishAlCrON
Coating processPVD
Corner radius in1/2
Cutting edge styleHoned
Hole diameter0.2362
Included angle degree360
Inscribed circle in1
Inscribed circle range1.0000+
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeBall Nose
Insert size10
Insert size code1000
Insert styleKDMB
Iso codeKDMB1000M0ERGC
Length in1
Length range1.0000+
Manufacturers catalog numberKDMB1000M0ERGC
Manufacturer gradeKCPH15
Material applicationSteel; Stainless Steel; Cast Iron; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
Multi use toolYes
Number of cutting edges1
Primary workpiece materialSteel; Stainless Steel; Hard Material; Non-Ferrous Metal; Superalloys & Titanium; Hard Material
RakePositive
Relief angle15.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1575
Thickness range0.1500 to 0.1750
Width in1
