Kennametal

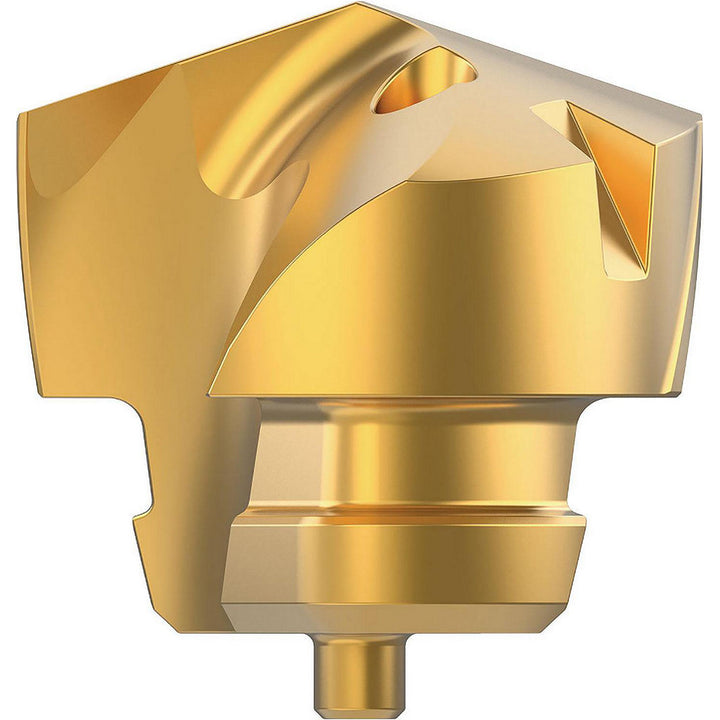

Carbide Insert, Grade KC7325, TiAlN - Kennametal 7002306
MFR# 7002306Series KTFST
$159.44List $191.23
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7325
CoatingTiAlN
Description
The Kennametal 7002306 is a carbide indexable insert, grade KC7325, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
ApplicationsToolDimensions:2flute/2margin/coolant; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in25/32
DrillingStackedPlates; 100160772
Drill point angle140
Flute length (mm)10.00
Flute typeHelical
Functional length0.3907
Height (mm)13.00
Included angle degree140
Insert geometryGTP
Insert holding methodClamp
Insert seat sizeX
Iso numberKTFST07813GTP
Manufacturer gradeKC7325
Material gradeFine Grain
Number of flutes2
Overall length projection0.5190
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
