Kennametal
Carbide Insert, Grade KC7325, TiAlN - Kennametal 7002462
MFR# 7002462Series KTFST
$190.44List $228.42
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
Flutes2
GradeKC7325
CoatingTiAlN
Description

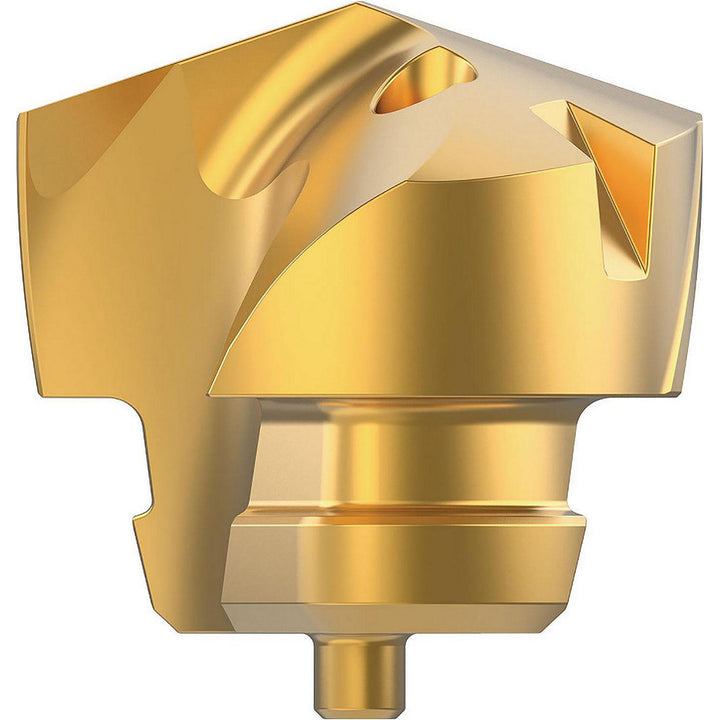

The Kennametal 7002462 is a carbide indexable insert, grade KC7325, TiAlN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
ApplicationsToolDimensions:2flute/2margin/coolant; Drilling
Coating finishTiAlN
Coating processPVD
Coolant throughYes
Cutting diameter in7/8
DrillingStackedPlates; 100160772
Drill point angle140
Flute length (mm)11.00
Flute typeHelical
Functional length0.4375
Height in7/8
Included angle degree140
Insert geometryGTP
Insert holding methodClamp
Insert seat sizeZA
Iso numberKTFST08750GTP
Manufacturer gradeKC7325
Material gradeFine Grain
Number of flutes2
Overall length projection0.5816
Point typeStandard
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Spiral typeRegular Spiral
StyleKTFST
Tip materialSolid Carbide
