Kennametal

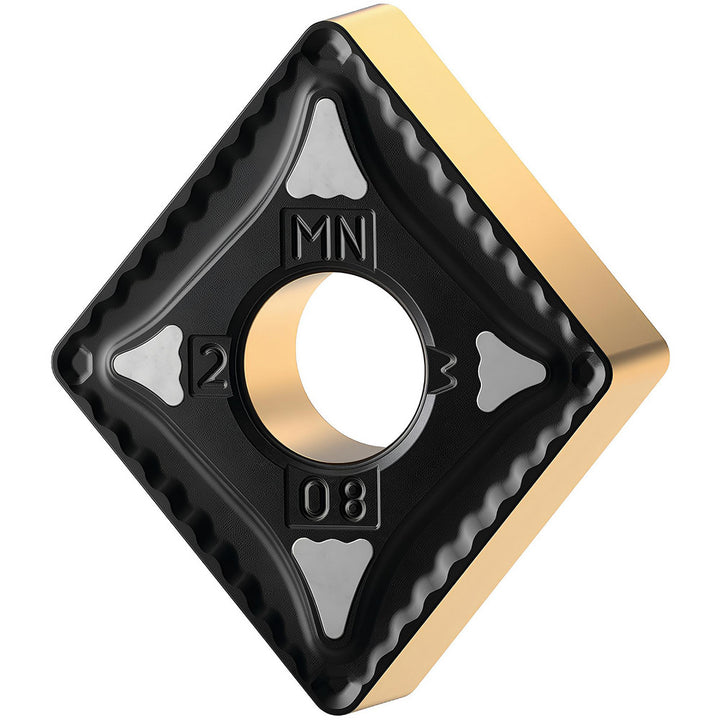

CNMG090304MN Carbide Insert, Grade KCP25C, TiN - Kennametal 7026378
MFR# 7026378ISO/ANSI# CNMG321MNSeries KENLOC
$14.98List $18.29
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026378 is a CNMG090304MN carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerMN
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle80
Industry standard numberCNMG321MN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3808
Insert materialCarbide
Insert shapeDiamond
Insert size code321
Insert styleCNMG
Insert thickness in1/8
Iso codeCNMG090304MN
Length range0.3000 - 0.4000
Manufacturers catalog number7026378
Manufacturer gradeKCP25C
Maximum depth of cut0.1268
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
