Kennametal

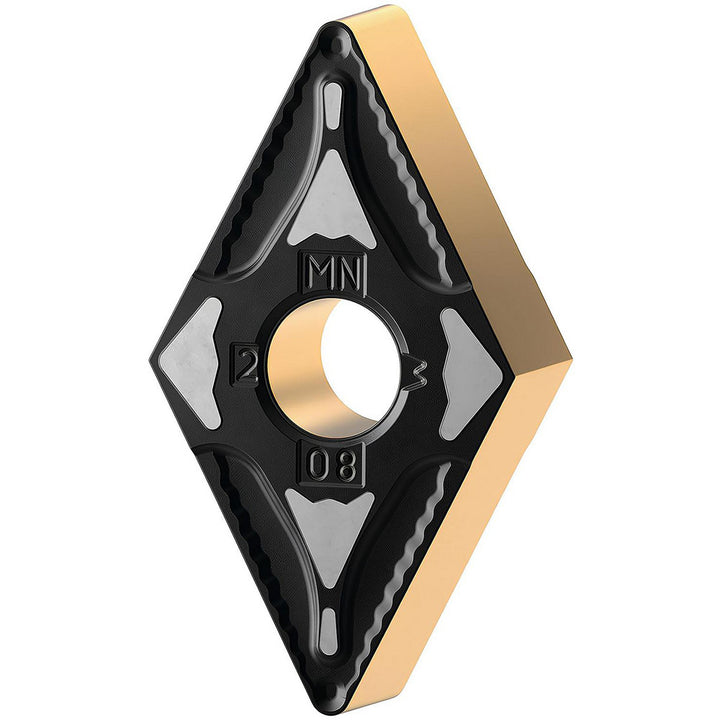

DNMG110404MN Carbide Insert, Grade KCP25C, TiN - Kennametal 7026421
MFR# 7026421ISO/ANSI# DNMG331MNSeries KENLOC
$21.67List $26.46
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026421 is a DNMG110404MN carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerMN
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle55
Industry standard numberDNMG331MN
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110404MN
Length range0.7000 - 10.0000
Manufacturers catalog number7026421
Manufacturer gradeKCP25C
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
