Kennametal

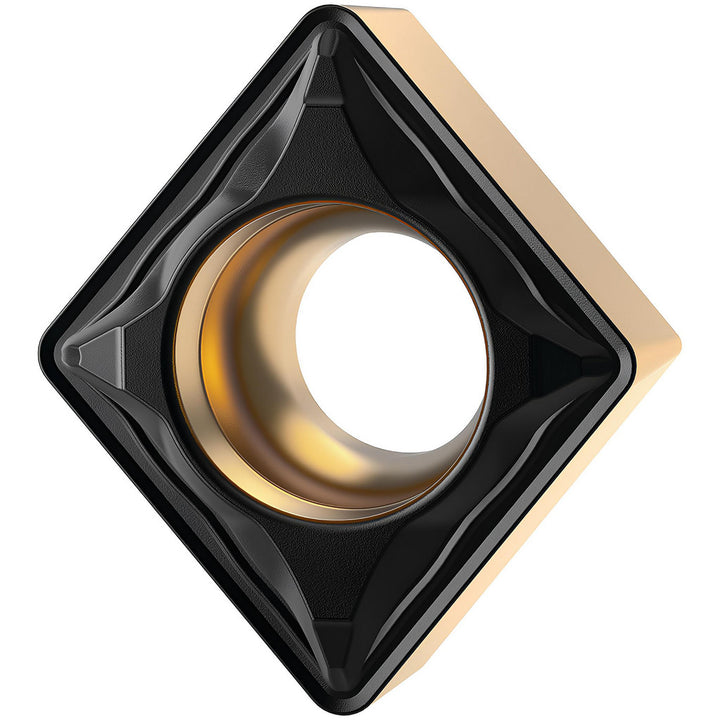

CCMT120408FP Carbide Insert, Grade KCP25C, TiN - Kennametal 7026538
MFR# 7026538ISO/ANSI# CCMT432FPSeries Screw-On
$30.57List $36.66
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026538 is a CCMT120408FP carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerFP
Clearance codeC
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.2165
Included angle80
Industry standard numberCCMT432FP
Inscribed circle in1/2
Insert handNeutral
Insert holding methodScrew
Insert length0.5077
Insert materialCarbide
Insert shapeDiamond
Insert size code432
Insert styleCCMT
Insert thickness in3/16
Iso codeCCMT120408FP
Length range0.5000 - 0.6000
Manufacturers catalog number7026538
Manufacturer gradeKCP25C
Maximum depth of cut0.1691
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
