Kennametal

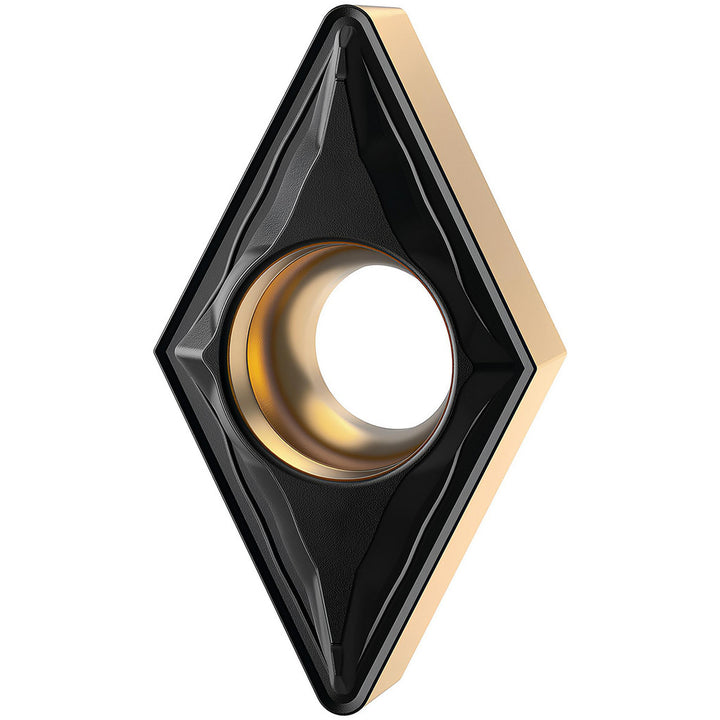

DCMT070208FP Carbide Insert, Grade KCP25C, TiN - Kennametal 7026543
MFR# 7026543ISO/ANSI# DCMT2152FPSeries Screw-On
$19.91List $24.30
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/4
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026543 is a DCMT070208FP carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerFP
Clearance codeC
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1102
Included angle55
Industry standard numberDCMT2152FP
Inscribed circle in1/4
Insert handNeutral
Insert holding methodScrew
Insert length0.6104
Insert materialCarbide
Insert shapeDiamond
Insert size code2152
Insert styleDCMT
Insert thickness in3/32
Iso codeDCMT070208FP
Length range0.6000 - 0.6500
Manufacturers catalog number7026543
Manufacturer gradeKCP25C
Maximum depth of cut0.2033
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in1/4
Wiper edgeNo
