Kennametal

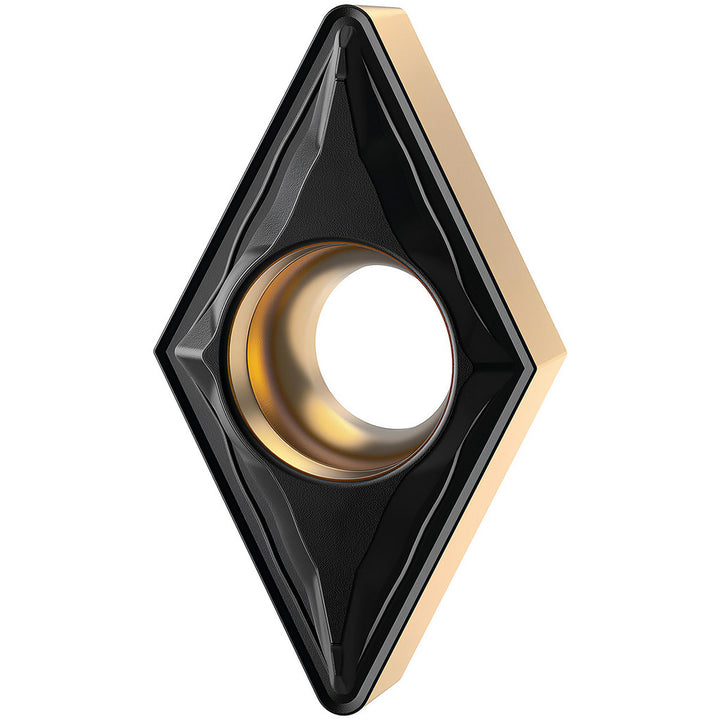

DCMT11T302FP Carbide Insert, Grade KCP25C, TiN - Kennametal 7026544
MFR# 7026544ISO/ANSI# DCMT32505FPSeries Screw-On
$18.46List $22.54
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026544 is a DCMT11T302FP carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerFP
Clearance codeC
Coating finishTiN
Coating processCVD
Corner radius in1/128
Cutting edge styleHoned
Full radiusNo
Hole diameter0.1732
Included angle55
Industry standard numberDCMT32505FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.9156
Insert materialCarbide
Insert shapeDiamond
Insert size code32505
Insert styleDCMT
Insert thickness in5/32
Iso codeDCMT11T302FP
Length range0.7000 - 10.0000
Manufacturers catalog number7026544
Manufacturer gradeKCP25C
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
