Kennametal

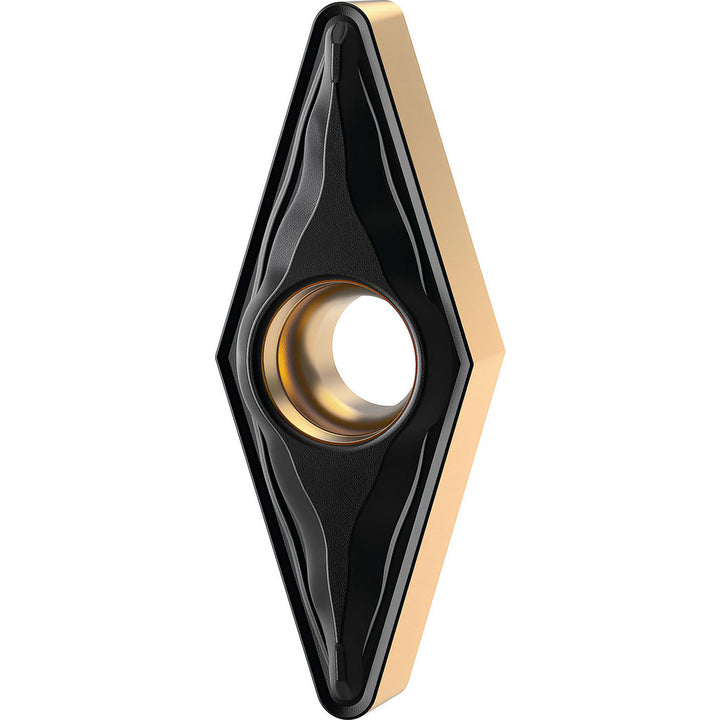

VBMT160404FP Carbide Insert, Grade KCP25C, TiN - Kennametal 7026559
MFR# 7026559ISO/ANSI# VBMT160404Series Screw-On
$27.93List $34.10
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026559 is a VBMT160404FP carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeVBMT331
Ansi size code331
Chip breakerFP
Chip breaker operationFinishing
Clearance codeB
Coating finishTiN
Coating processCVD
Corner radius in1/64
Cutting edge styleHoned
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1732
Included angle35
Industry standard numberVBMT331FP
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length1.3076
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code331
Insert styleVBMT
Insert thickness in3/16
Iso codeVBMT160404FP
Iso insert codeVBMT160404
Iso size code160404
Length range0.7000 - 10.0000
Manufacturers catalog number7026559
Manufacturer gradeKCP25C
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges2
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle15
Relief angle5
Side clearancePositive
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
