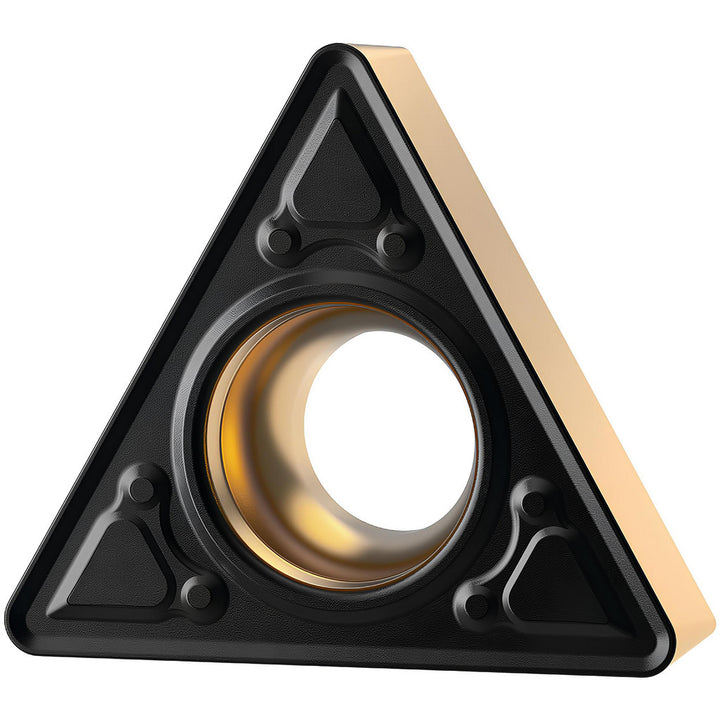

TCMT16T308MF Carbide Insert, Grade KCP25C, TiN - Kennametal 7026569
MFR# 7026569ISO/ANSI# TCMT3252MFSeries Screw-On
$26.31List $32.11
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeTriangle
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026569 is a TCMT16T308MF carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerMF
Clearance codeC
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1732
Included angle60
Industry standard numberTCMT3252MF
Inscribed circle in3/8
Insert handNeutral
Insert holding methodScrew
Insert length0.6495
Insert materialCarbide
Insert shapeTriangle
Insert size code3252
Insert styleTCMT
Insert thickness in5/32
Iso codeTCMT16T308MF
Length range0.6000 - 0.6500
Manufacturers catalog number7026569
Manufacturer gradeKCP25C
Maximum depth of cut0.2163
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges3
Primary workpiece materialSteel; Cast Iron
RakePositive
Rake angle0
Relief angle7
StandardsANSI; ISO
Tolerance codeM
Width0.6495
Wiper edgeNo
