Kennametal

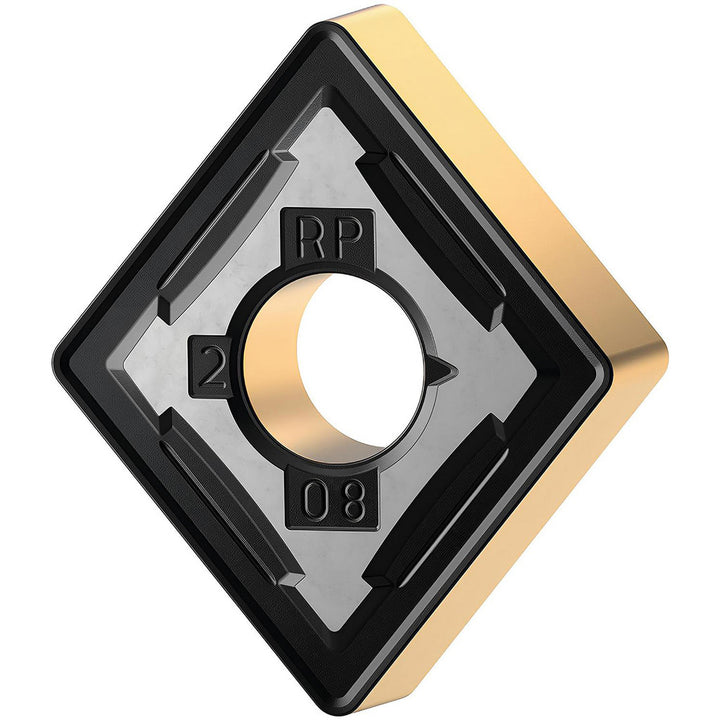

CNMG160616RP Carbide Insert, Grade KCP25C, TiN - Kennametal 7026644
MFR# 7026644ISO/ANSI# CNMG544RPSeries KENLOC
$32.22List $39.33
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC5/8
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026644 is a CNMG160616RP carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerRP
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2500
Included angle80
Industry standard numberCNMG544RP
Inscribed circle in5/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.6346
Insert materialCarbide
Insert shapeDiamond
Insert size code544
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG160616RP
Length range0.6000 - 0.6500
Manufacturers catalog number7026644
Manufacturer gradeKCP25C
Maximum depth of cut0.2113
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle5
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in5/8
Wiper edgeNo
