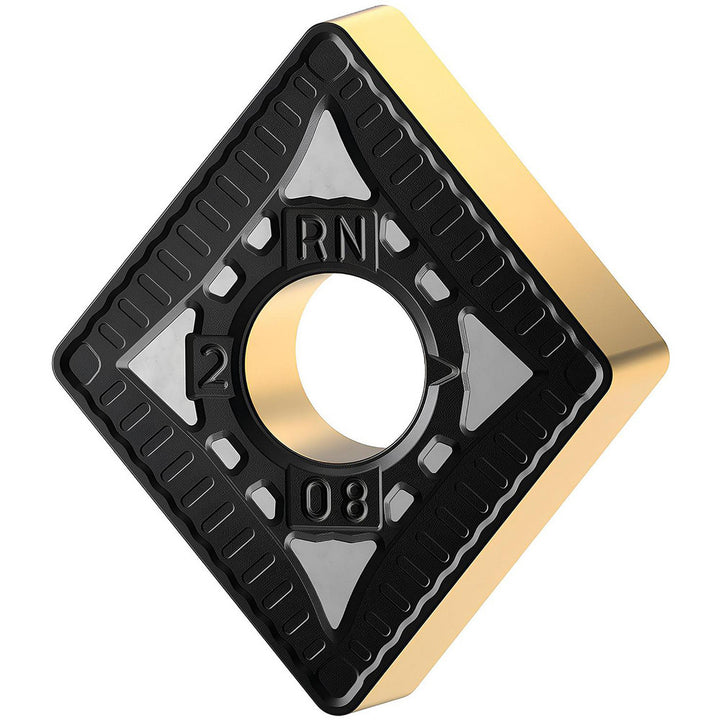

CNMG190616RN Carbide Insert, Grade KCP25C, TiN - Kennametal 7026651
MFR# 7026651ISO/ANSI# CNMG644RNSeries KENLOC
$41.05List $50.11
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026651 is a CNMG190616RN carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerRN
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in1/16
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.3125
Included angle80
Industry standard numberCNMG644RN
Inscribed circle in3/4
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.7616
Insert materialCarbide
Insert shapeDiamond
Insert size code644
Insert styleCNMG
Insert thickness in1/4
Iso codeCNMG190616RN
Length range0.7000 - 10.0000
Manufacturers catalog number7026651
Manufacturer gradeKCP25C
Maximum depth of cut0.2536
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/4
Wiper edgeNo
