Kennametal

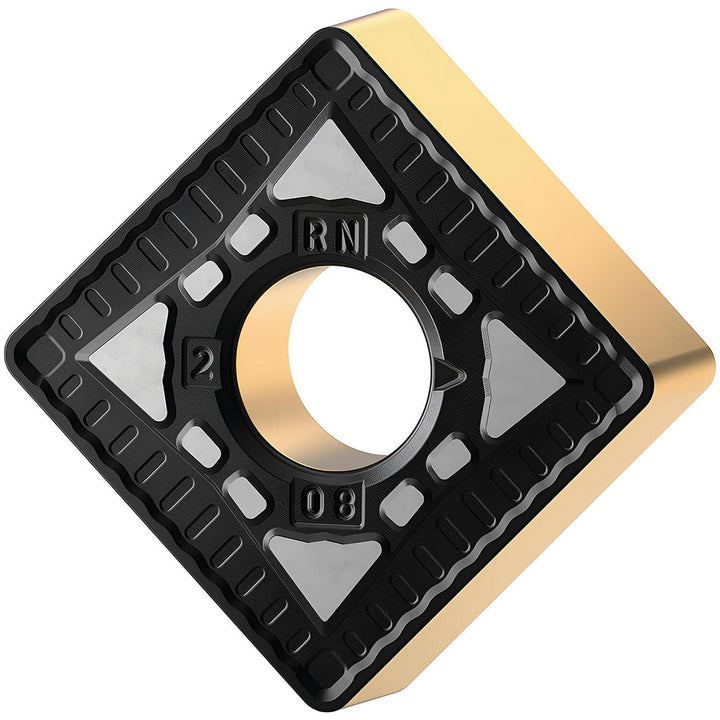

SNMG120412RN Carbide Insert, Grade KCP25C, TiN - Kennametal 7026678
MFR# 7026678ISO/ANSI# SNMG433RNSeries KENLOC
$18.27List $22.31
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeSquare
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7026678 is a SNMG120412RN carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerRN
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in3/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.2031
Included angle90
Industry standard numberSNMG433RN
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length in1/2
Insert materialCarbide
Insert shapeSquare
Insert size code433
Insert styleSNMG
Insert thickness in3/16
Iso codeSNMG120412RN
Length range0.5000 - 0.6000
Manufacturers catalog number7026678
Manufacturer gradeKCP25C
Maximum depth of cut0.1665
Multi use applicationTurning; Facing; Boring
Multi use toolYes
Number of cutting edges8
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle0
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in1/2
Wiper edgeNo
