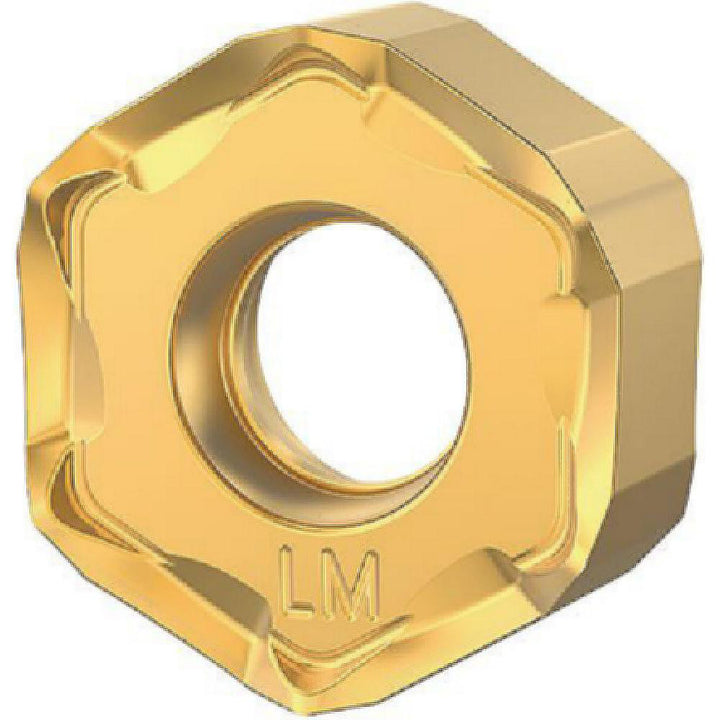

HNPJ0604ANERLM Solid Carbide Insert, Grade KC522M, AlTiN - Kennametal 7032979
MFR# 7032979ISO/ANSI# HNPJ0604ANERLMCat# HNPJ0604ANERLMSeries HNPJ
$23.44List $28.61
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeHexagon
GradeKC522M
MaterialSolid Carbide
CoatingAlTiN
Description
The Kennametal 7032979 is a HNPJ0604ANERLM solid carbide indexable insert, grade KC522M, AlTiN coated. Suited for steel, stainless steel, cast iron, superalloys & titanium.
Specifications
Ansi codeHNPJ43ANERLM
Chip breakerLM
Coating finishAlTiN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleHoned
Hole diameter0.1969
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNPJ
Iso codeHNPJ0604ANERLM
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberHNPJ0604ANERLM
Manufacturer gradeKC522M
Material applicationSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
Material gradeC1
Maximum depth of cut0.2440
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Cast Iron; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1854
Thickness range0.1850 to 0.2000
Width0.4724
