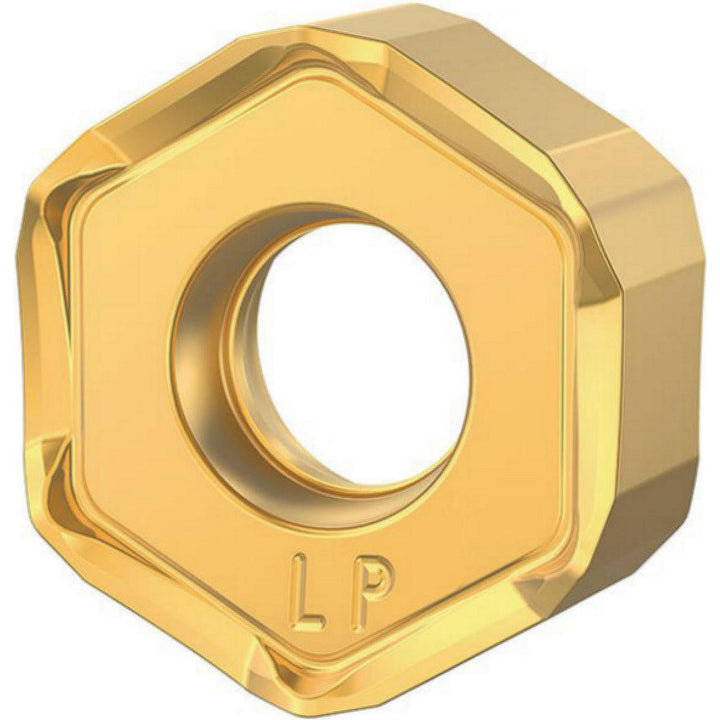

HNPJ0604ANERLP Solid Carbide Insert, Grade KCPM40, TiAlN - Kennametal 7033332
MFR# 7033332ISO/ANSI# HNPJ0604ANERLPCat# HNPJ0604ANERLPSeries HNPJ
$28.04List $34.22
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeHexagon
GradeKCPM40
MaterialSolid Carbide
CoatingTiAlN
Description
The Kennametal 7033332 is a HNPJ0604ANERLP solid carbide indexable insert, grade KCPM40, TiAlN coated. Suited for steel, stainless steel, superalloys & titanium.
Specifications
Ansi codeHNPJ43ANERLP
Chip breakerLP
Coating finishTiAlN
Coating processPVD
Corner radius0.0394
Cutter series compatibilityDodeka
Cutting edge styleHoned
Hole diameter0.1969
Included angle degree120
Inscribed circle0.4724
Inscribed circle range0.4000 to 0.5000
Insert handRight Hand
Insert holding methodScrew
Insert materialSolid Carbide
Insert shapeHexagon
Insert size4
Insert size code43
Insert styleHNPJ
Iso codeHNPJ0604ANERLP
Length0.4724
Length range0.4500 to 0.5000
Manufacturers catalog numberHNPJ0604ANERLP
Manufacturer gradeKCPM40
Material applicationSteel; Stainless Steel; Superalloys & Titanium
Maximum depth of cut0.2440
Multi use toolYes
Number of cutting edges12
Primary workpiece materialSteel; Stainless Steel; Superalloys & Titanium
RakeNegative
Rake angle0
Relief angle0.00
Single or double sided insertDouble
StandardsANSI; ISO
Thickness0.1858
Thickness range0.1850 to 0.2000
Width0.4724
