Kennametal

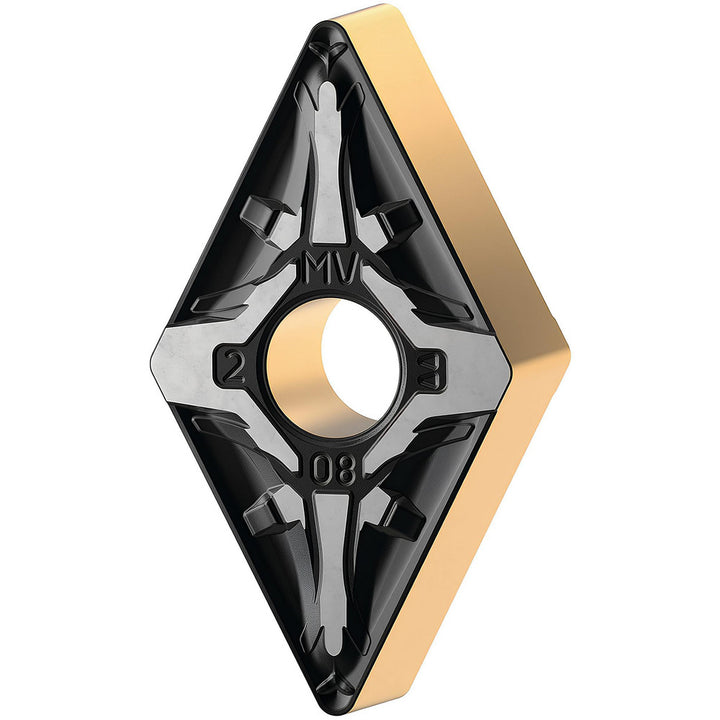

DNMG110408MV Carbide Insert, Grade KCP25C, TiN - Kennametal 7036157
MFR# 7036157ISO/ANSI# DNMG110408Series KENLOC
$21.67List $26.46
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeD - Diamond (Rhombic) 55-Deg
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7036157 is a DNMG110408MV carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Ansi insert codeDNMG332
Ansi size code332
Chip breakerMV
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in1/32
Cutting edge styleChamfered; Honed
Full radiusNo
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Hole diameter0.1500
Included angle55
Industry standard numberDNMG332MV
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.9156
Insert materialCarbide
Insert shapeD - Diamond (Rhombic) 55-Deg
Insert size code332
Insert styleDNMG
Insert thickness in3/16
Iso codeDNMG110408MV
Iso insert codeDNMG110408
Iso size code110408
Length range0.7000 - 10.0000
Manufacturers catalog number7036157
Manufacturer gradeKCP25C
Maximum depth of cut0.3049
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle20
Relief angle0
Side clearanceNegative
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
