Kennametal

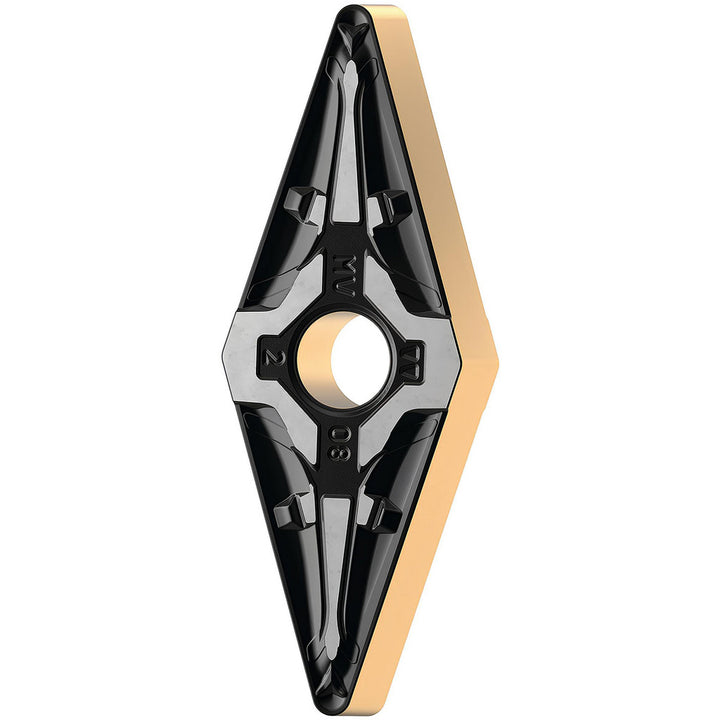

VNMG160404MV Carbide Insert, Grade KCP25C, TiN - Kennametal 7036173
MFR# 7036173ISO/ANSI# VNMG331MVSeries KENLOC
$28.91List $34.68
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCP25C
MaterialCarbide
CoatingTiN
Description
The Kennametal 7036173 is a VNMG160404MV carbide indexable insert, grade KCP25C, TiN coated. Suited for steel, cast iron.
Specifications
Chip breakerMV
Clearance codeN
Coating finishTiN
Coating processCVD
Corner radius in1/64
Cutting edge styleChamfered & Honed
Full radiusNo
Hole diameter0.1500
Included angle35
Industry standard numberVNMG331MV
Inscribed circle in3/8
Insert handNeutral
Insert holding methodClamp; Pin
Insert length1.3076
Insert materialCarbide
Insert shapeDiamond
Insert size code331
Insert styleVNMG
Insert thickness in3/16
Iso codeVNMG160404MV
Length range0.7000 - 10.0000
Manufacturers catalog number7036173
Manufacturer gradeKCP25C
Maximum depth of cut0.4354
Multi use applicationTurning; Facing; Boring; Back Turning; Back Boring
Multi use toolYes
Number of cutting edges4
Primary workpiece materialSteel; Cast Iron
RakeNegative
Rake angle20
Relief angle0
StandardsANSI; ISO
Tolerance codeM
Width in3/8
Wiper edgeNo
