Kennametal

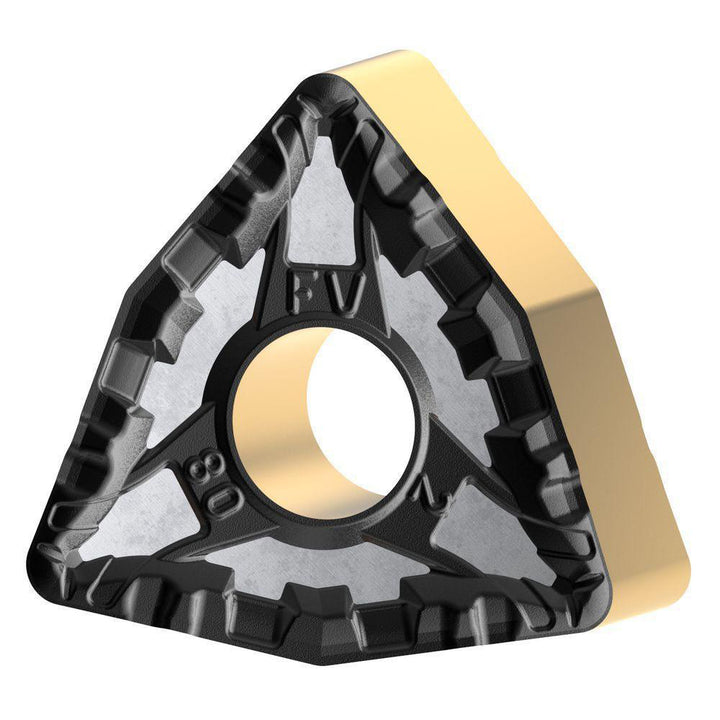

W - Trigon 80-Deg 1/2" IC Carbide Insert, Grade KCP25C, Al2O3 - Kennametal 7064045
MFR# 7064045ISO/ANSI# WNMG080404
$20.22List $24.68
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeW - Trigon 80-Deg
GradeKCP25C
MaterialCarbide
CoatingAl2O3
Description
The Kennametal 7064045 is a carbide indexable insert, grade KCP25C, Al2O3 coated.
Specifications
Ansi insert codeWNMG431
Ansi size code431
Chip breakerFV
Chip breaker operationFinishing
Clearance codeN
Coating finishAl2O3
Corner radius in1/64
Grade characteristicsSteel (P) - Moderate Wear-Resistance and Toughness; Aluminum & Non-Ferrous (N) - Moderate Wear-Resistance and Toughness to High Toughness
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeW - Trigon 80-Deg
Insert size code431
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG080404
Iso size code080404
Manufacturer gradeKCP25C
Number of cutting edges6
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in3/16
