Kennametal

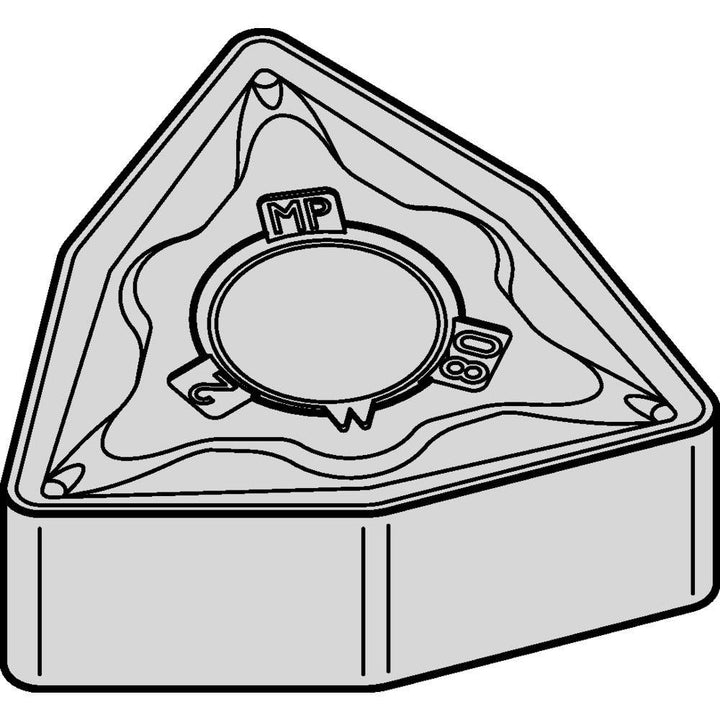

Trigon 80 1/2" IC Carbide Insert, Grade KCP25C, MT-TiCN - Kennametal 7089618
MFR# 7089618ISO/ANSI# WNMGSeries Kenloc Inserts
$16.87List $20.59
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTrigon 80
GradeKCP25C
MaterialCarbide
CoatingMT-TiCN
Description
The Kennametal 7089618 is a carbide indexable insert, grade KCP25C, MT-TiCN coated.
Specifications
Ansi insert codeWNMG
Chip breakerMP
Clearance codeN
Coating finishMT-TiCN
Corner radius in3/64
Cutting edge styleHoned
Included angle80.00
Inscribed circle in1/2
Insert handNeutral
Insert holding methodClamp; Pin
Insert length0.3420
Insert materialCarbide
Insert shapeTrigon 80
Insert size code433
Insert styleWNMG
Insert thickness in3/16
Iso insert codeWNMG
Manufacturer gradeKCP25C
Number of cutting edges6
RakePositive
Rake angle6
Relief angle0.000
Side clearanceNegative
Tolerance codeM
Width in1/2
