Kennametal

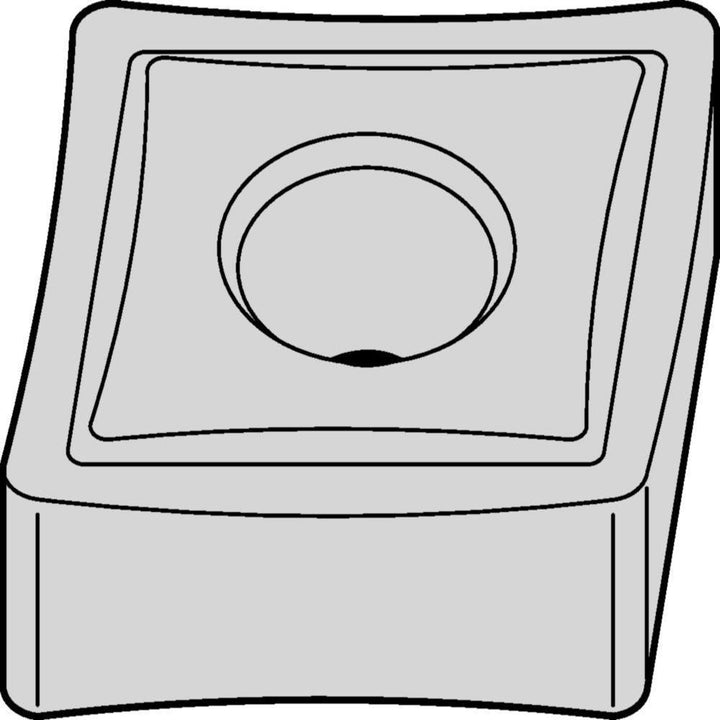

Diamond 1/2" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7090564
MFR# 7090564
$30.36List $36.41
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
⚡ Need it urgently? Confirm stock & ship time →
Sold in multiples of 5 — minimum order 5
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7090564 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerP
Clearance codeN
Coating finishAlTiN
Corner radius in1/64
Included angle80
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code431
Insert styleCNGP
Insert thickness in3/16
Manufacturer gradeKCU10B
Number of cutting edges4
Relief angle0.000
Tolerance codeG
Width in3/16
