Kennametal

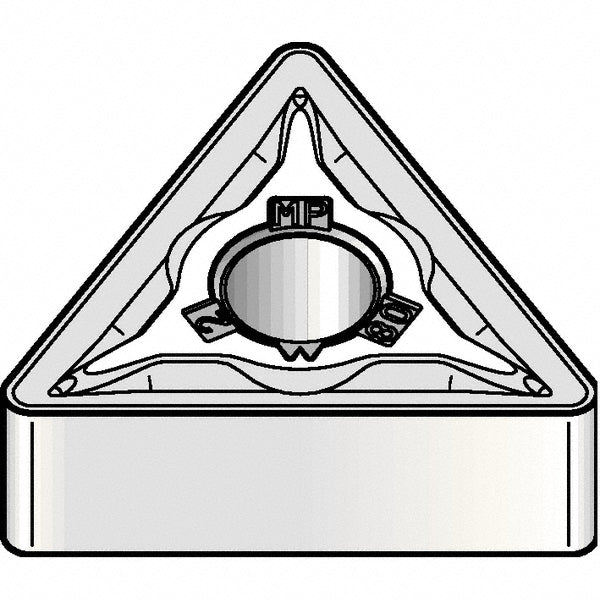

Triangle 1/2" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7090621
MFR# 7090621
$21.45List $26.18
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC1/2
ShapeTriangle
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7090621 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerMP
Clearance codeN
Coating finishAlTiN
Corner radius in1/32
Included angle60
Inscribed circle in1/2
Insert handNeutral
Insert materialCarbide
Insert shapeTriangle
Insert size code432
Insert styleTNMG
Insert thickness in3/16
Manufacturer gradeKCU10B
Number of cutting edges6
Relief angle0.000
Tolerance codeM
Width in3/16
