Kennametal

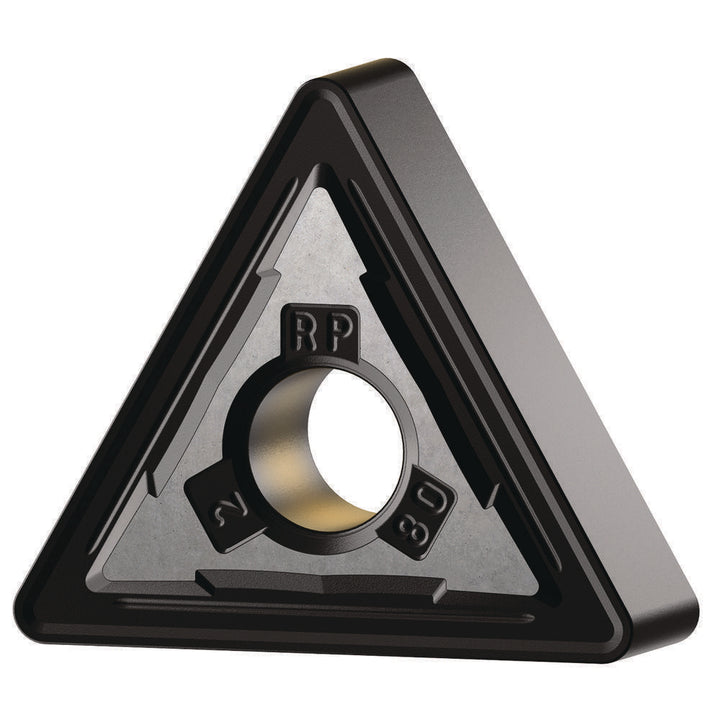

Triangle 3/4" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7090631
MFR# 7090631
$66.33List $80.97
Save 18%
In stock - ships in 1-3 business days
Request a quote
- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/4
ShapeTriangle
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7090631 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerRP
Clearance codeN
Coating finishAlTiN
Corner radius in3/32
Included angle60
Inscribed circle in3/4
Insert handNeutral
Insert materialCarbide
Insert shapeTriangle
Insert size code666
Insert styleTNMG
Insert thickness in3/8
Manufacturer gradeKCU10B
Number of cutting edges6
Relief angle0.000
Tolerance codeM
Width in3/8
