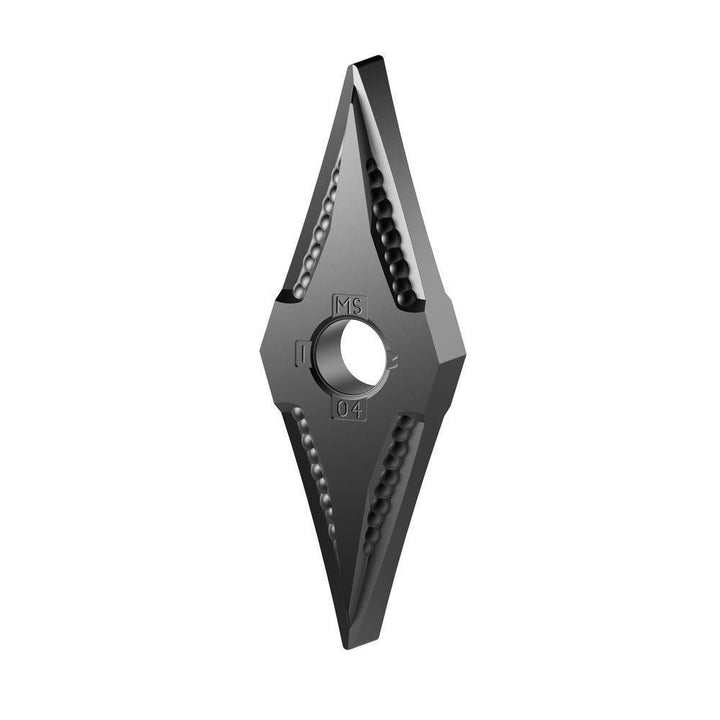

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7090632

Kennametal

V - Diamond (Rhombic) 35-Deg 3/8" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7090632

MFR# 7090632ISO/ANSI# VNMG160402

$24.50List $29.90 Save 18%
In stock - ships in 1-3 business days
Request a quote
  • Fast sourcing
  • Regrinding available
  • 20+ yrs expertise
IC3/8
ShapeV - Diamond (Rhombic) 35-Deg
GradeKCU10B
MaterialCarbide
CoatingAlTiN

Description

The Kennametal 7090632 is a carbide indexable insert, grade KCU10B, AlTiN coated.

Specifications

Ansi insert codeVNMG3305
Ansi size code3305
Chip breakerMS
Chip breaker operationRoughing; Medium Machining
Clearance codeN
Coating finishAlTiN
Corner radius0.0080
Grade characteristicsSteel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Aluminum & No
Included angle35
Inscribed circle in3/8
Insert handNeutral
Insert materialCarbide
Insert shapeV - Diamond (Rhombic) 35-Deg
Insert size code3305
Insert styleVNMG
Insert thickness in3/16
Iso insert codeVNMG160402
Iso size code160402
Manufacturer gradeKCU10B
Number of cutting edges4
Relief angle0
Side clearanceNegative
Tolerance codeM
Width in3/16
