Kennametal
Diamond Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093157
MFR# 7093157
$23.84List $28.59
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description

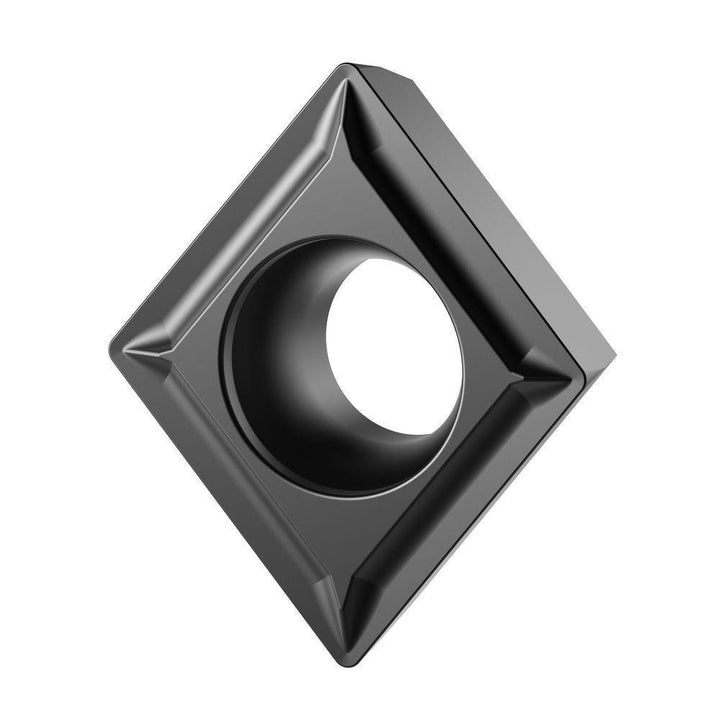

The Kennametal 7093157 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerLF
Clearance codeP
Coating finishAlTiN
Corner radius in.008
Included angle80
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code21505
Insert styleCPGT
Insert thickness in3/32
Manufacturer gradeKCU10B
Number of cutting edges2
Relief angle11.000
Tolerance codeG
Width in3/32
