Kennametal

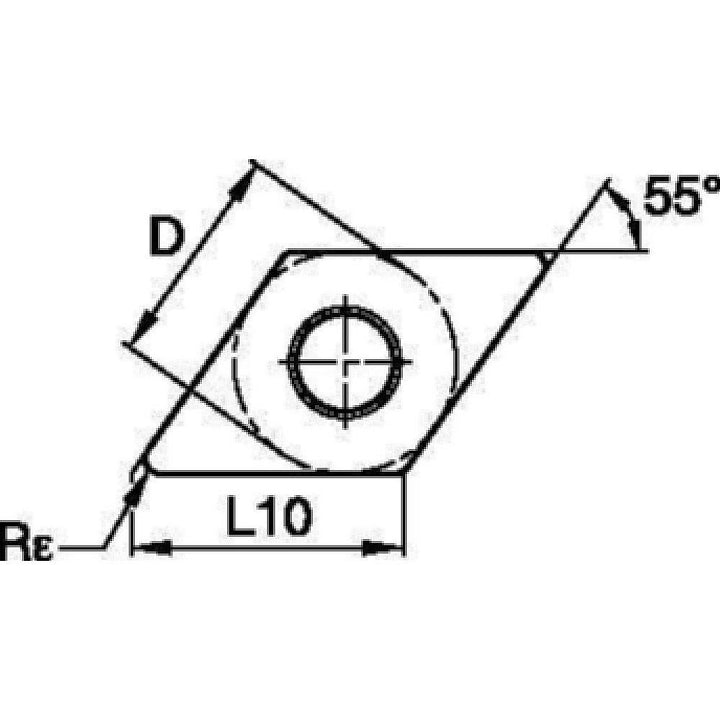

Diamond 3/8" IC Carbide Insert, Grade KCU10B, AlTiN - Kennametal 7093178
MFR# 7093178
$28.13List $33.74
Save 16%
Usually ships in 1-3 business days
Ship times are estimates. We confirm availability on every order and email you right away if anything changes.
Sold in multiples of 5 — minimum order 5
Supplier prices are confirmed before checkout. If one has changed since this page was updated, we show you the new price before you pay.
Request a quote- Fast sourcing
- Regrinding available
- 20+ yrs expertise
IC3/8
ShapeDiamond
GradeKCU10B
MaterialCarbide
CoatingAlTiN
Description
The Kennametal 7093178 is a carbide indexable insert, grade KCU10B, AlTiN coated.
Specifications
Chip breakerLF
Clearance codeC
Coating finishAlTiN
Corner radius0.0040
Included angle55
Inscribed circle in3/8
Insert handNeutral
Insert materialCarbide
Insert shapeDiamond
Insert size code32502
Insert styleDCGT
Insert thickness in5/32
Manufacturer gradeKCU10B
Number of cutting edges2
Relief angle7.000
Tolerance codeG
Width in5/32
